SELECT A DIAGRAM

01 - Door And Panel Parts

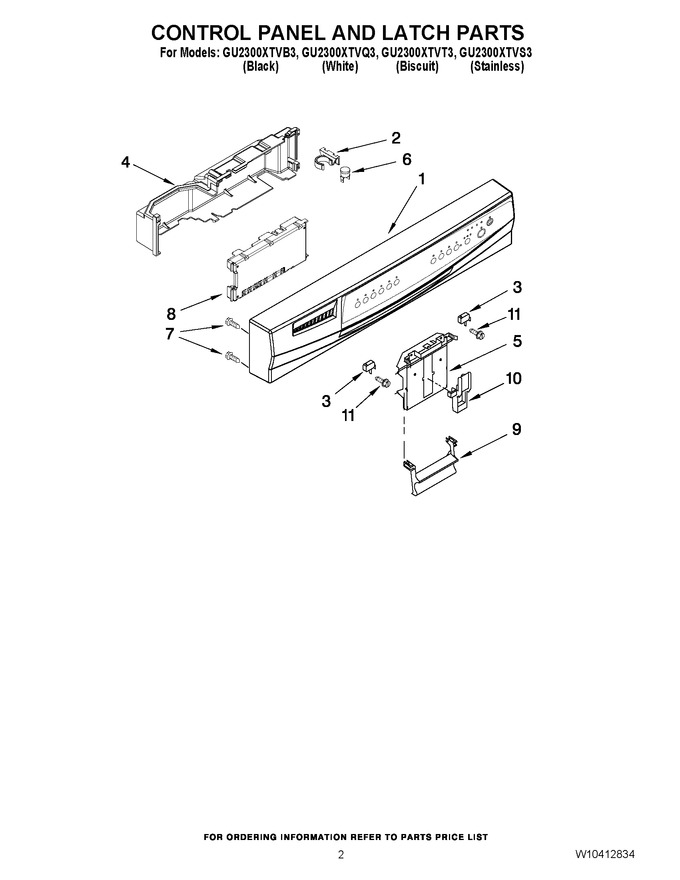

02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175292		Console Asm. Includes Active Overlay & Insert (white)		Appelez-nous	-
1	W10175293		Console Asm. Includes Active Overlay & Insert (biscuit)		Appelez-nous	-
1	W10175291		Console Asm. Includes Active Overlay & Insert (black)		Appelez-nous	-
2	8546546		Clip, Bi-metal				$ 7.82
3	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30
4	W10158350		Cover Control Shield Assembly				$ 26.50
5	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 114.47
6	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
7	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 8.41
8	WPW10285179		Control, Electronic   (Replaces: W10285179)			Immediately	$ 316.68
9	WP8534985		Handle (white)   (Replaces: 8534985)				$ 127.13
9	WP8534984		Handle (black)   (Replaces: 8534984)				$ 131.06
9	8534986		Handle (biscuit)				$ 89.73
10	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 101.28
11	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
