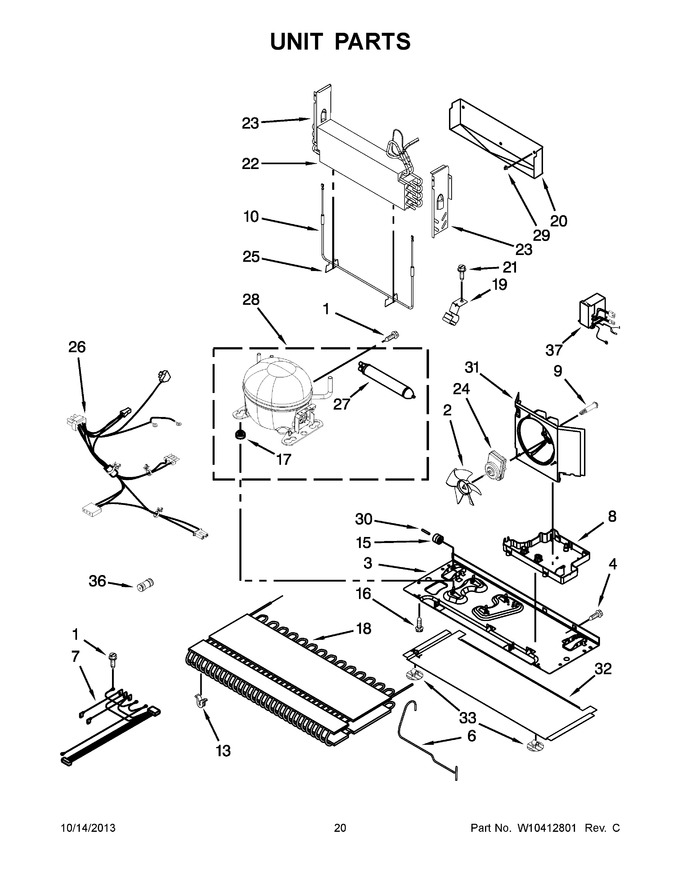

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W11727651 | Basepan (Replaces: W10210985) |
|
$ 105.29 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 6 | W10242974 | Tube, Discharge |
|
$ 82.85 | |||||
| 7 | W11334745 | Motor, Evaporator (includes Heater Harness) (Replaces: W10276647) |
|
Immediately | $ 133.52 | ||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10296785) |
|
Immediately | $ 99.03 | ||||
| 9 | W10829281 | Screw, Shoulder (Replaces: W10216919) |
|
$ 12.65 | |||||
| 10 | WP12729123 | Heater, Defrost (Replaces: 12729123) |
|
$ 182.32 | |||||
| 13 | WPW10137529 | Grommet-condenser (Replaces: W10137529) |
|
$ 8.34 | |||||
| 15 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
Immediately | $ 7.19 | ||||
| 18 | WPW10346415 | Condenser (Replaces: W10346415) |
|
$ 335.38 | |||||
| 19 | W10281329 | Clip, Drier |
|
$ 13.08 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: W10292803) |
|
$ 54.30 | |||||
| 21 | W11686675 | Screw (Replaces: 12990702) |
|
$ 13.59 | |||||
| 22 | W11536253 | Evaporator (Replaces: W10313899) |
|
$ 250.69 | |||||
| 23 | 12963102SP | Dam (right Hand) |
|
- | |||||
| 23 | 12963002SP | Dam (left Hand) |
|
- | |||||
| 24 | W11613295 | Motor, Fan (Replaces: W10239053) |
|
Immediately | $ 136.84 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 26 | W10303788 | Harness-mc-unit With Power Cord |
|
$ 264.56 | |||||
| 27 | W10273371 | Drier |
|
- | |||||
| 28 | W10276644 | Compressor (Replaces: W10168473) |
|
Immediately | $ 725.31 | ||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 11.53 | |||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 31 | W11556315 | Shroud (Replaces: W10189184) |
|
$ 79.66 | |||||
| 32 | W10206338 | Extension-basepan |
|
- | |||||
| 33 | W10206339 | Fastener, Basepan |
|
$ 10.69 | |||||
| 36 | WPW10334458 | Connector, Water Tube (Replaces: W10334458) |
|
$ 21.59 | |||||
| 37 | W10893917 | Assembly, Inverter Box (Replaces: W10186719) |
|
Immediately | $ 448.37 | ||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | N/P | Refrigerant Charge, 5.5 Oz (r-134a) |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 91.35 | ||||
| NI | 978028 | Valve, Access |
|
- |
