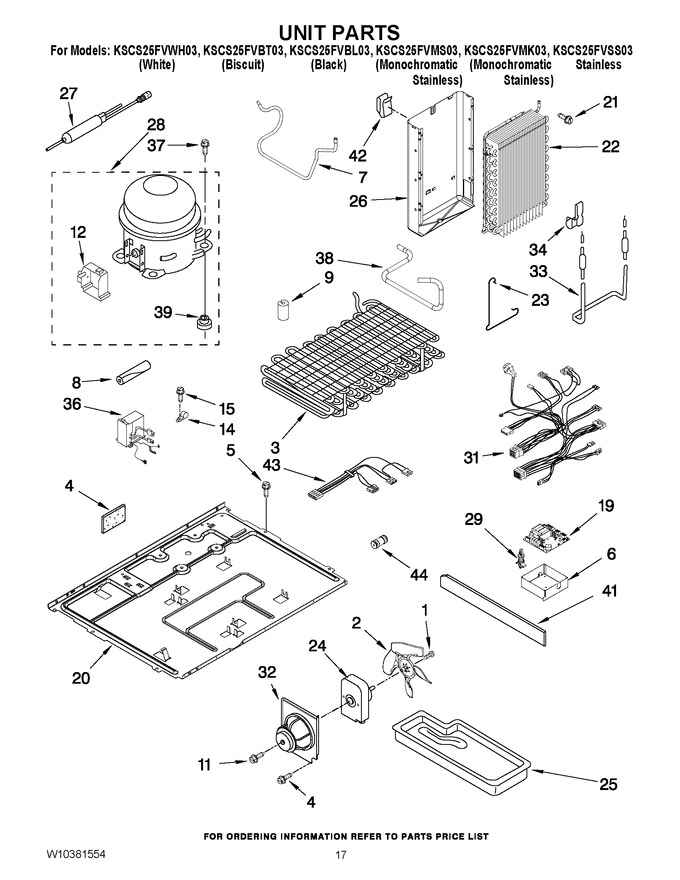

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488234 | Screw (Replaces: 777070) |
|
$ 6.74 | |||||
| 2 | WPW10139483 | Fan Blade (Replaces: W10139483) |
|
$ 95.07 | |||||
| 3 | W10193018 | Condenser Assembly |
|
$ 330.67 | |||||
| 4 | W11553819 | Insulation, Sound (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 5 | 3400524 | Screw (6) |
|
$ 12.65 | |||||
| 6 | 2223703 | Housing, Control Board |
|
$ 75.75 | |||||
| 7 | W10528579 | Tube Suction (Replaces: 2223351) |
|
$ 262.20 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 9 | W10852725 | Grommet, Condenser (4) (Replaces: 2319835) |
|
$ 7.70 | |||||
| 11 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.06 | ||||
| 12 | 2215676 | Cover, Terminal |
|
$ 89.87 | |||||
| 14 | 2185960 | Clamp, Cable (Replaces: 2305373) |
|
- | |||||
| 15 | 488280 | Screw |
|
- | |||||
| 19 | W10219463 | Electronic Control |
|
$ 291.62 | |||||
| 20 | 2306932 | Baseplate |
|
$ 158.02 | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 363.32 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 25 | 2223398 | Tray, Evaporator |
|
- | |||||
| 26 | 2224022 | Heat Shield |
|
- | |||||
| 27 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 28 | W10276644 | Compressor (includes Items 12 & 39) (Replaces: W10155907) |
|
Immediately | $ 725.31 | ||||
| 29 | 2223800 | Spacer (5) |
|
$ 17.50 | |||||
| 31 | WP2310122 | Harness, Main Control (Replaces: 2310122) |
|
$ 264.56 | |||||
| 32 | 2224024 | Fan, Motor Bracket |
|
$ 56.36 | |||||
| 33 | 2323199 | Heater, Defrost |
|
$ 127.42 | |||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 36 | WPW10154805 | Inverter Box (Replaces: W10154805) |
|
Immediately | $ 378.76 | ||||
| 37 | 876811 | Screw (4) (Replaces: 489373) |
|
$ 7.42 | |||||
| 38 | W10325116 | Tube, Process |
|
- | |||||
| 39 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 41 | 2223394 | Extension, Air Baffle |
|
- | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 43 | 2310121 | Unit Harness |
|
- | |||||
| 44 | WP2300868 | Connector, Water Tube (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 91.35 | ||||
| NI | N/P | Refrigerant Charge (6.00 Oz. (r-134a)) |
|
- |
