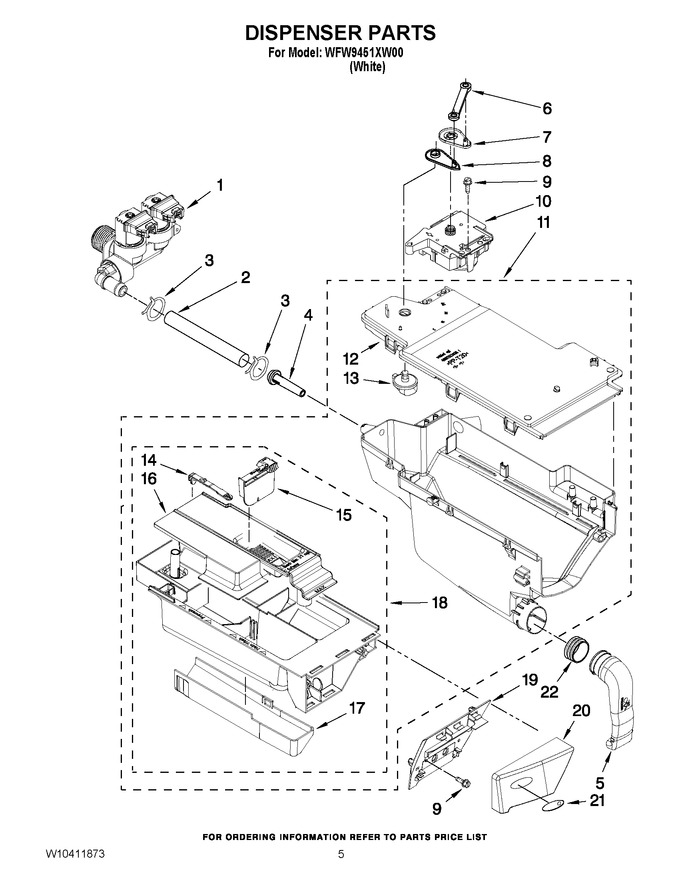

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10289387 | Valve, Inlet (Replaces: W10289387) |
|
Immediately | $ 142.16 | ||||
| 2 | W10291582 | Hose, Inlet Valve To Dispenser |
|
$ 23.96 | |||||
| 3 | WP489503 | Clamp, Hose (Replaces: 8181751) |
|
Immediately | $ 10.16 | ||||
| 4 | WP8183181 | Nozzle, Inlet (Replaces: 8183181) |
|
$ 85.34 | |||||
| 5 | WPW10005300 | Tube, Dispenser To Bellow (Replaces: 8181718) |
|
Immediately | $ 20.03 | ||||
| 6 | WP8183183 | Lever, Water Distribution (Replaces: 8183183) |
|
$ 85.27 | |||||
| 7 | WP8183184 | Cam, Actuator (Replaces: 8183184) |
|
$ 85.27 | |||||
| 8 | WPW10161052 | Lever, Connection (Replaces: W10161052) |
|
Immediately | $ 6.80 | ||||
| 9 | WP8540282 | Screw (Replaces: 8181661) |
|
$ 10.93 | |||||
| 10 | WPW10352973 | Actuator (Replaces: W10283468) |
|
Immediately | $ 150.08 | ||||
| 11 | W10157886 | Dispenser, Complete (includes Item 8) |
|
- | |||||
| 12 | W10164400 | Plate, Distribution |
|
$ 27.70 | |||||
| 13 | WP8181712 | Nozzle, Distribution (Replaces: 8181712) |
|
$ 84.21 | |||||
| 14 | 8181721 | Hook, Drawer |
|
$ 37.02 | |||||
| 15 | WPW10121596 | Separator, With Selection Slider (Replaces: W10121596) |
|
$ 69.05 | |||||
| 16 | W10121598 | Syphon, Bleach/softener |
|
$ 77.51 | |||||
| 17 | W10003140 | Cover, Detergent Drawer (Replaces: 8183179) |
|
$ 80.92 | |||||
| 18 | WPW10015190 | Drawer, Detergent (complete) (Replaces: 8183173) |
|
$ 110.57 | |||||
| 19 | WPW10156617 | Bracket, Handle Fixation (Replaces: W10156617) |
|
$ 97.49 | |||||
| 20 | W10357498 | Handle, Drawer (includes Items 19 & 21) |
|
- | |||||
| 21 | 8183253 | Medallion |
|
$ 27.06 | |||||
| 22 | WP8181747 | Seal (Replaces: 8181747) |
|
Immediately | $ 24.60 |
