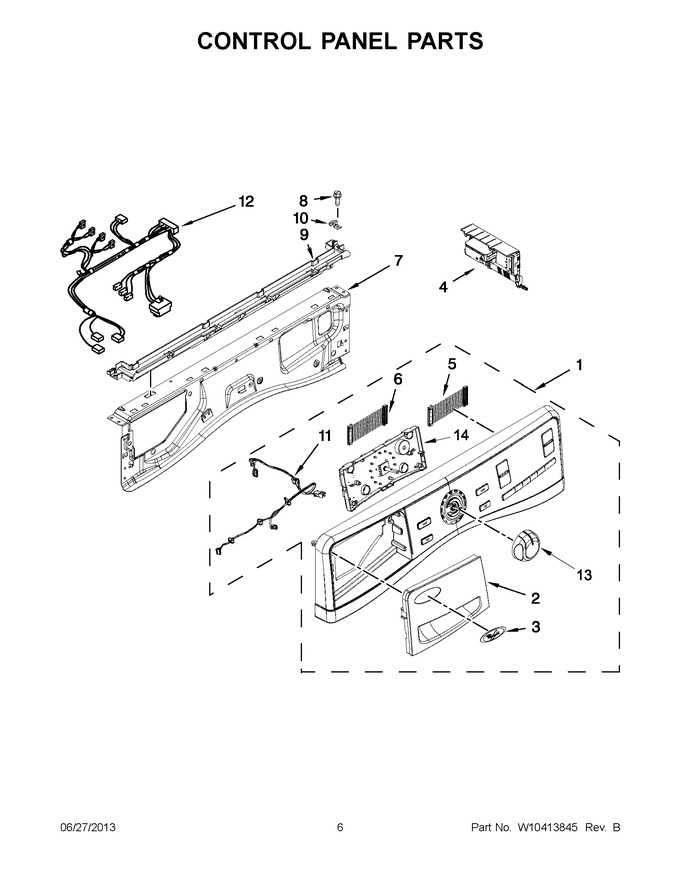

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10388437		Console Asssembly (silver)		Appelez-nous	-
1	W10388426		Console Asssembly (white)		Appelez-nous	-
1	W10388439		Console Asssembly (red)				$ 397.21
2	W10839403		Handle, Dispenser Drawer (also Shown On Page 5) (includes Item 3) (white)   (Replaces: W10311731)				$ 102.52
2	W10327028		Handle, Dispenser Drawer (also Shown On Page 5) (includes Item 3) (silver)				$ 47.65
2	W10316353		Handle, Dispenser Drawer (also Shown On Page 5) (includes Item 3) (red)				$ 45.96
3	W10117943		Badge		Appelez-nous	-
4	W10427967		Control Unit, Central				$ 192.40
5	W10267937		Harness, Jumper		Appelez-nous	-
6	W10267938		Harness, Jumper Ui		Appelez-nous	-
7	W10208197		Bracket, Console				$ 174.54
8	WP489464		Screw   (Replaces: W10142290)			Immediately	$ 8.38
9	WPW10653575		Channel, Water   (Replaces: W10317570)				$ 90.94
10	W10317566		Clip, Spring				$ 9.16
11	W10271989		Harness, Main Ui				$ 250.95
12	W10271979		Harness, Wiring (upper Main)				$ 110.31
13	WPW10251394		Assembly, Control Knob (chrome)   (Replaces: W10251394)				$ 55.94
14	W10455538		Ui, Center (includes Knob)		Appelez-nous	-
