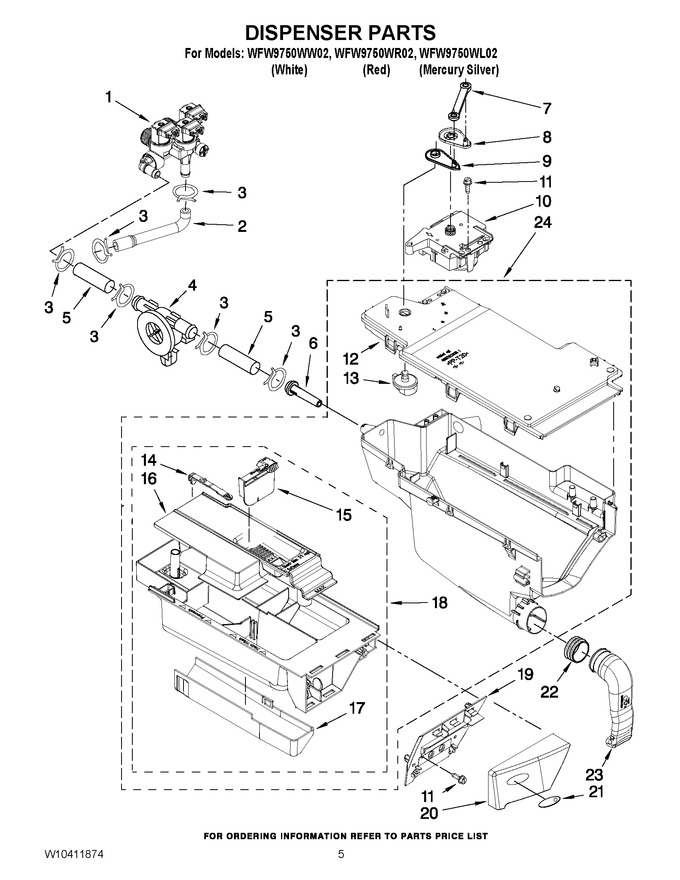

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10247306 | Valve, Inlet (Replaces: W10247306) |
|
Immediately | $ 167.78 | ||||
| 2 | W10247308 | Hose, Inlet Valve To Vent Pipe |
|
- | |||||
| 3 | WP489503 | Clamp, Hose (Replaces: 8181751) |
|
Immediately | $ 11.29 | ||||
| 4 | WPW10110225 | Flowmeter (Replaces: 8181696) |
|
Immediately | $ 109.03 | ||||
| 5 | W10275565 | Hose, Inlet Valve To Flowmeter |
|
- | |||||
| 6 | WP8183181 | Nozzle, Inlet (Replaces: 8183181) |
|
$ 94.82 | |||||
| 7 | WP8183183 | Lever, Water Distribution (Replaces: 8183183) |
|
$ 94.74 | |||||
| 8 | WP8183184 | Cam, Actuator (Replaces: 8183184) |
|
$ 94.74 | |||||
| 9 | WPW10161052 | Lever, Connection (Replaces: W10161052) |
|
Immediately | $ 7.55 | ||||
| 10 | WPW10352973 | Actuator (Replaces: W10283468) |
|
Immediately | $ 134.69 | ||||
| 11 | WP8540282 | Screw (Replaces: 8181661) |
|
$ 12.14 | |||||
| 12 | W10164400 | Plate, Distribution |
|
$ 27.70 | |||||
| 13 | WP8181712 | Nozzle, Distribution (Replaces: 8181712) |
|
$ 93.57 | |||||
| 14 | 8181721 | Hook, Drawer |
|
$ 37.02 | |||||
| 15 | WPW10121596 | Separator, With Selection Slider (Replaces: W10121596) |
|
$ 76.72 | |||||
| 16 | W10157775 | Siphon, Bleach/softener |
|
$ 55.65 | |||||
| 17 | W10003140 | Cover, Detergent Drawer (Replaces: 8183179) |
|
$ 89.91 | |||||
| 18 | W10157760 | Drawer, Detergent (complete) |
|
$ 51.72 | |||||
| 19 | WPW10156617 | Bracket, Handle Fixation (Replaces: W10156617) |
|
$ 108.32 | |||||
| 20 | W10283376 | Handle, Drawer (includes Items 19 & 21) (white) |
|
- | |||||
| 20 | W10283426 | Handle, Drawer (includes Items 19 & 21) (red) |
|
- | |||||
| 20 | W10283428 | Handle, Drawer (includes Items 19 & 21) (mercury Silver) |
|
- | |||||
| 21 | 8183253 | Medallion |
|
$ 27.06 | |||||
| 22 | WP8181747 | Seal (Replaces: 8181747) |
|
Immediately | $ 27.33 | ||||
| 23 | WPW10005300 | Tube, Dispenser To Bellow (Replaces: 8181718) |
|
Immediately | $ 22.25 | ||||
| 24 | W10157759 | Dispenser, Complete (includes Item 9) |
|
$ 127.50 |
