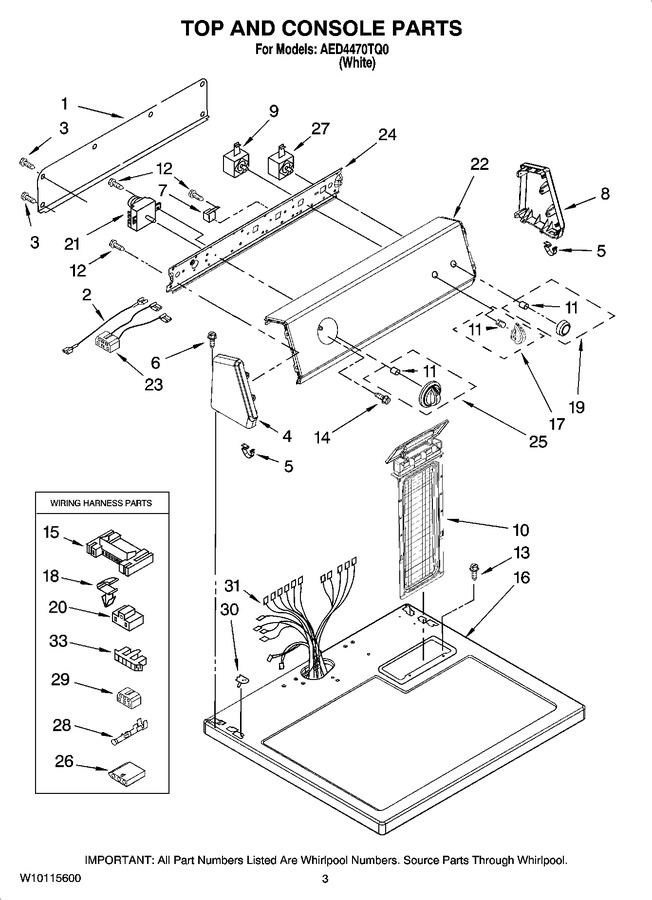

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 2 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 8579674 | Cap, End (l.h.) (white) |
|
- | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 8 | 8579673 | Cap, End (r.h.) (white) |
|
- | |||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 124.91 | |||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: 8558463) |
|
Immediately | $ 52.03 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.22 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 332.62 | ||||
| 17 | WPW10110063 | Knob, Control (1) (white) (Replaces: W10110063) |
|
Immediately | $ 56.31 | ||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 19 | W10110066 | Knob, Push-to-start (white) |
|
- | |||||
| 20 | 3401144 | Connector, (pts Relay) |
|
$ 12.20 | |||||
| 21 | WP3979617 | Timer, 60 Hz. (Replaces: 3979617) |
|
Immediately | $ 367.42 | ||||
| 22 | W10086678 | Panel, Control (white) |
|
- | |||||
| 23 | 8539893 | Wire, Jumper (temperature) |
|
$ 18.84 | |||||
| 24 | 8579678 | Bracket, Control |
|
- | |||||
| 25 | W10110064 | Timer Knob Assembly (white) |
|
$ 26.97 | |||||
| 26 | 3936144 | Connector |
|
$ 20.21 | |||||
| 27 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 92.88 | ||||
| 28 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 29 | 3347243 | Connector |
|
- | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 31 | 8576503 | Harness, Wiring |
|
- | |||||
| 33 | 3397269 | Connector, Timer |
|
$ 25.55 |
