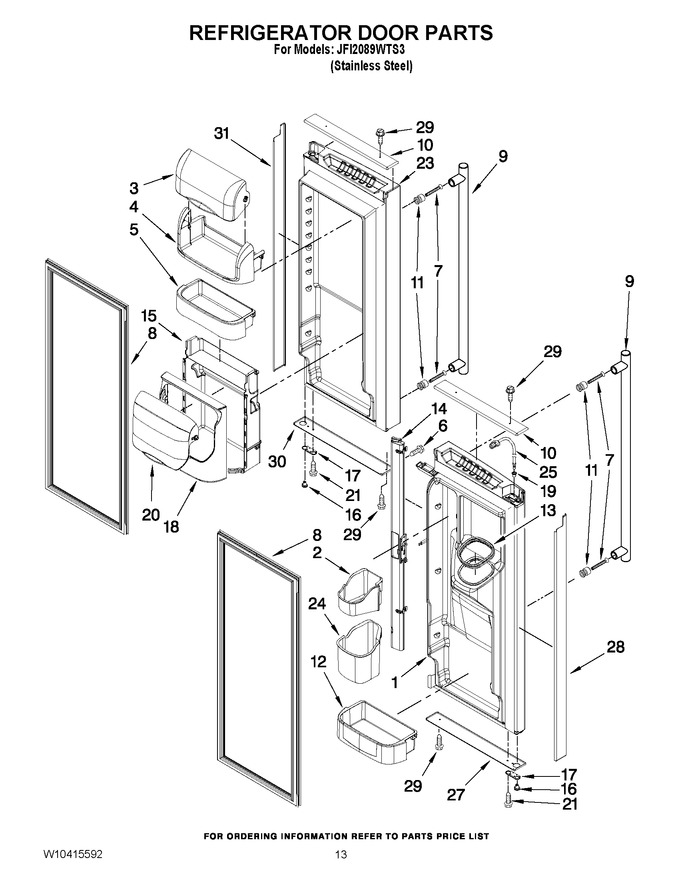

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12978078B | Door, Left (black) |
|
- | |||||
| 2 | W10187453 | Bin, Upper Door (Replaces: 12977401) |
|
$ 73.08 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bin, Shelf (chiller Top) (Replaces: 12945801SP) |
|
Immediately | $ 84.62 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W10290759 | Screw, Handle |
|
$ 5.83 | |||||
| 8 | W11378944 | Gasket, Door (black) (Replaces: W10163898) |
|
Immediately | $ 187.59 | ||||
| 9 | WPW10298244 | Handle, Door (stainless) (Replaces: W10298244) |
|
$ 327.03 | |||||
| 10 | 13004501S | Trim, Door Top |
|
- | |||||
| 11 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 12 | WP12840004 | Bin, Shelf (gallon) (Replaces: 12840004) |
|
$ 94.89 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 342.08 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 12945601SP) |
|
$ 269.63 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 12945501SP) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 12945701SP) |
|
Immediately | $ 86.29 | ||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 23 | 12978077B | Door, Right (black) |
|
- | |||||
| 24 | 12977501 | Bin, Lower Door |
|
- | |||||
| 25 | W10275942 | Waterline, Door |
|
Immediately | $ 120.27 | ||||
| 27 | 13004504S | Trim, Door Bottom |
|
- | |||||
| 28 | 13004601S | Trim, Door Side |
|
- | |||||
| 29 | W10854958 | Screw, Trim (6) (Replaces: 12990302) |
|
$ 7.90 | |||||
| 30 | 13004505S | Trim, Door Bottom |
|
- | |||||
| 31 | 13004602S | Trim, Door Side |
|
- |
