01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)

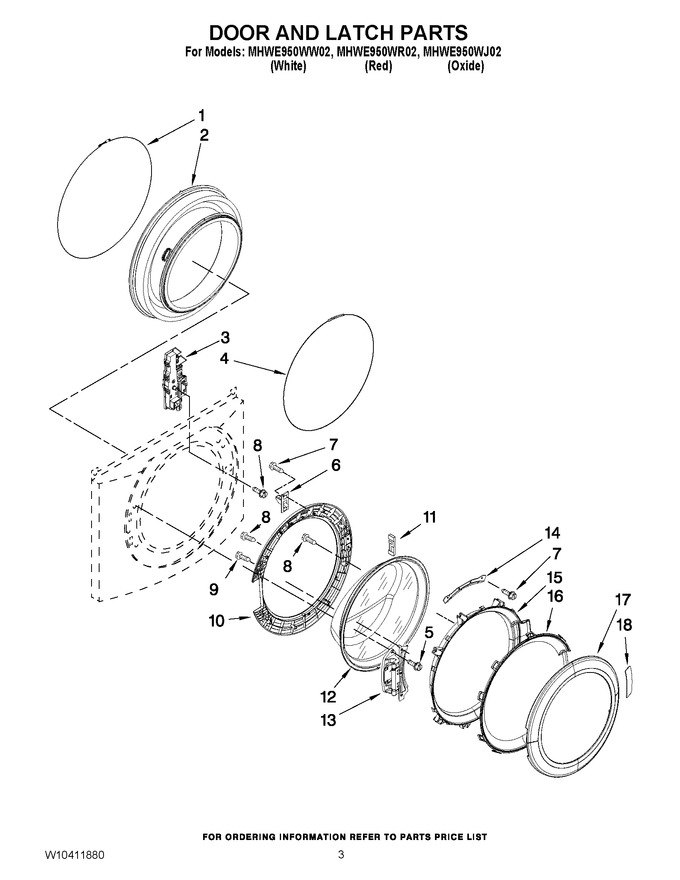

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8182210		Clamp, Bellow To Tub   (Replaces: 8182210)			Immediately	$ 35.04
2	WP8182119		Bellow   (Replaces: 8182119)			Immediately	$ 187.27
3	WP8183270		Lock, Door   (Replaces: 8183270)			Immediately	$ 211.98
4	W10902779		Clamp, Bellow To Front Panel   (Replaces: 8182211)			Immediately	$ 30.31
5	W10313165		Screw		Appelez-nous	-
6	WPW10488048		Hook, Door   (Replaces: W10217552)			Immediately	$ 7.89
7	W11230114		Screw   (Replaces: 8181758)				$ 13.28
8	WP8540282		Screw   (Replaces: 8181661)				$ 11.56
9	WP8181660		Screw   (Replaces: 8181660)				$ 6.95
10	WPW10003370		Frame, Door Back Support   (Replaces: 8183195)				$ 220.36
11	W10128586		Clamp, Glass Support				$ 23.08
12	8181655		Glass, Door		Appelez-nous	-
13	WP8183202		Hinge, Door   (Replaces: 8183202)			Immediately	$ 169.21
14	W10295703		Clamp, Glass				$ 18.90
15	WP8183256		Frame, Door Front Support   (Replaces: 8183256)				$ 292.25
16	W10248071		Screen, Door		Appelez-nous	-
17	W10248123		Trim Ring, Outer Door (includes Item 18)		Appelez-nous	-
18	W10121607		Pad, Door Handle		Appelez-nous	-
