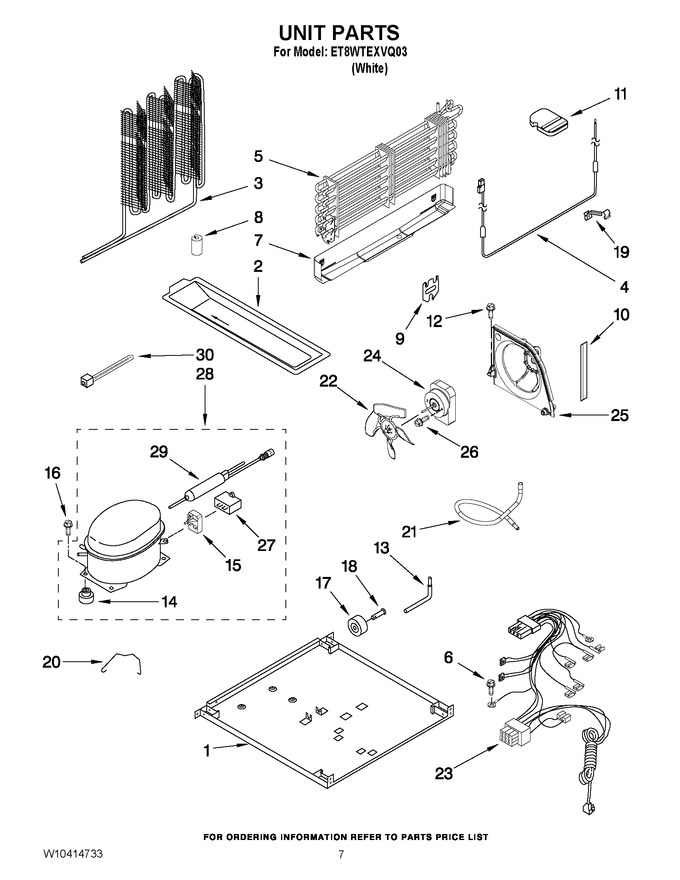

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320188		Plate, Unit Mounting		Appelez-nous	-
2	WP2254574		Evaporator Tray   (Replaces: 2254574)				$ 183.59
3	W10159808		Condenser		Appelez-nous	-
4	WP2315531		Heater, Defrost   (Replaces: 2315531)				$ 104.62
5	2254250		Evaporator Assy.				$ 234.07
6	WP489128		Screw   (Replaces: 488500)				$ 11.40
7	2254294		Drain Pan		Appelez-nous	-
8	W10852725		Grommet-cond   (Replaces: 2319835)				$ 8.09
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	2201184		Support Block				$ 6.43
12	3400518		Screw				$ 13.63
13	2154109		Tube, Process				$ 76.26
14	876811		Grommet (production)   (Replaces: 1100826)				$ 7.79
14	WPW10169124		Grommet (service)   (Replaces: 2264447)				$ 7.55
15	W10805623		Start-device, Combination (start Relay And Overload) (service)   (Replaces: W10249964)				$ 132.96
15	W10805623		Start Device, Combination (start Relay And Overload) (production)   (Replaces: W10330836)				$ 132.96
16	876811		Screw   (Replaces: 489373)				$ 7.79
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	2182338		Clip, Heater				$ 6.62
20	2212996		Strap   (Replaces: 2255113)				$ 12.72
21	2225237		Tube, Suction				$ 40.12
22	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 25.19
23	W10308838		Wire Assembly, Unit		Appelez-nous	-
24	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
25	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 87.99
26	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
27	WPW10662129		Capacitor (service)   (Replaces: 2169373)			Immediately	$ 58.86
27	WPW10662129		Capacitor (production)   (Replaces: 2264017)			Immediately	$ 58.86
28	W10285060		Compressor (includes Items 14, 15, 27 & 29)   (Replaces: W10252075)				$ 738.55
29	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
29	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
30	WPW10339879		Clamp   (Replaces: 2263990)				$ 8.30
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (r134a)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
