01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Freezer Door Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Optional Parts

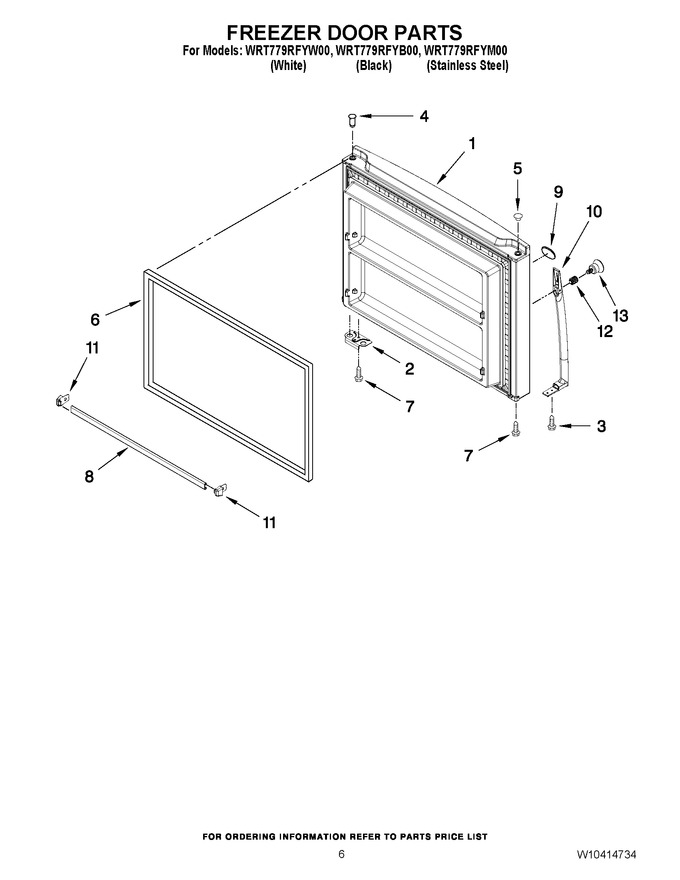

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10353320		Freezer Door (includes Illus. 4 & 6) (stainless Steel)   (Replaces: W10353320)				$ 624.15
1	LW10299907		Freezer Door (includes Illus. 4 & 6) (white)   (Replaces: W10299907)				$ 539.05
1	LW10353301		Freezer Door (includes Illus. 4 & 6) (black)   (Replaces: W10353301)				$ 630.93
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	8534058		Screw				$ 8.87
4	W11189115		Thimble   (Replaces: W10334042)				$ 12.71
5	WP2254517		Hole Plug, Hinge Sleeve (grey)   (Replaces: 2254517)			Immediately	$ 24.34
5	WP2212651		Hole Plug, Hinge Sleeve (black)   (Replaces: 2212651)				$ 24.21
5	WP2212648		Hole Plug, Hinge Sleeve (white)   (Replaces: 2212648)			Immediately	$ 8.19
6	W11624958		Door Gasket, Magnetic (grey)   (Replaces: W10279559)				$ 320.92
6	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 225.08
6	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
7	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
8	W10469910		Trim, Door Shelf (2)   (Replaces: W10308873)				$ 164.72
9	WPW10393264		Nameplate (grey)   (Replaces: W10393264)				$ 67.74
9	W11178521		Nameplate (white)   (Replaces: W10387117)			Immediately	$ 63.13
10	WPW10498430		Handle (black)   (Replaces: W10354109)				$ 121.29
10	W11765172		Handle (titanium Sparkle)   (Replaces: W10371981)			Immediately	$ 125.17
10	WPW10498429		Handle (white)   (Replaces: W10366325)				$ 175.09
11	W10308871		Endcap Trim (rs)				$ 10.44
11	W10338485		Endcap Trim (ls)				$ 10.41
12	690046		Set Screw		Appelez-nous	-
13	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51

    View Diagram in Separate Window       Print Part List
