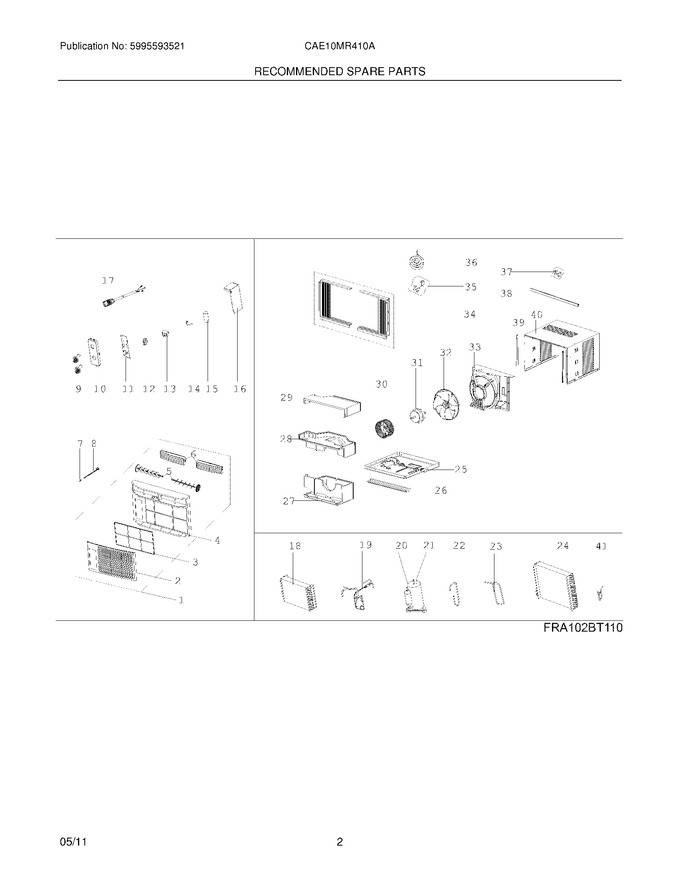

03 - Recommencded Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304482752 | Panel,front Assembly |
|
- | |||||
| 2 | 5304482738 | Panel,grille ,front |
|
- | |||||
| 3 | 5304482739 | Filter |
|
- | |||||
| 4 | 5304482740 | Frame,assy ,front |
|
- | |||||
| 7 | 5304476801 | Sleeve,vent Door Assy ,guide |
|
- | |||||
| 8 | 5304482753 | Door,ventilation |
|
- | |||||
| 9 | 5304472217 | Knob Assembly,control ,w/spring |
|
$ 34.44 | |||||
| 10 | 5304476763 | Control Panel,with Overlay |
|
- | |||||
| 11 | 5304476764 | Cover,control Box |
|
- | |||||
| 14 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 16 | 5304476767 | Control Box |
|
- | |||||
| 19 | 5304482619 | Tube,capillary |
|
- | |||||
| 25 | 5304476774 | Base,unit Chassis |
|
- | |||||
| 26 | 5304476775 | Rail,shutter Track ,bottom |
|
- | |||||
| 27 | 5304476776 | Scroll,blower Housing ,bottom |
|
- | |||||
| 28 | 5304476777 | Scroll,blower Housing ,middle |
|
- | |||||
| 29 | 5304476778 | Scroll,blower Housing ,top |
|
- | |||||
| 33 | 5304482617 | Shroud,condensor Fan |
|
- | |||||
| 34 | 5304472208 | Window Filler Kit,slider Panels |
|
- | |||||
| 35 | 5304472192 | Hardware,mounting ,screws/locks |
|
$ 8.49 | |||||
| 36 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| 37 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 38 | 5304472210 | Rail,shutter Track ,top |
|
- | |||||
| 39 | 5304472209 | Retainer,shutter ,cabinet Sides |
|
$ 11.48 | |||||
| 40 | 5304476783 | Cabinet,wrapper/sleeve |
|
- | |||||
| F12 | 5304476765 | Sensor Assembly,temperature |
|
$ 91.72 | |||||
| F13 | 5304476766 | Switch,master ,rotary |
|
- | |||||
| F15 | 5304471300 | Capacitor |
|
- | |||||
| F17 | 5304476768 | Power Cord,lcdi ,test/reset |
|
$ 177.82 | |||||
| F18 | 5304482618 | Evaporator |
|
- | |||||
| F20 | 5304476613 | Compressor,w/overload |
|
$ 464.26 | |||||
| F21 | 5304476612 | Overload Protector |
|
$ 159.41 | |||||
| F22 | 5304476771 | Tube,suction |
|
- | |||||
| F23 | 5304482620 | Tube,discharge |
|
- | |||||
| F24 | 5304482621 | Condenser |
|
- | |||||
| F30 | 5304476058 | Blower Wheel,centrifugal |
|
$ 70.98 | |||||
| F31 | 5304482622 | Motor,fan |
|
$ 290.72 | |||||
| F32 | 5304504802 | Fan Blade,axial (Replaces: 5304476059) |
|
- | |||||
| F41 | 5304476367 | Drier-filter |
|
$ 45.55 | |||||
| F5 | 5304476761 | Louver,vertical |
|
- | |||||
| F6 | 5304476762 | Louver,horizontal |
|
- |
