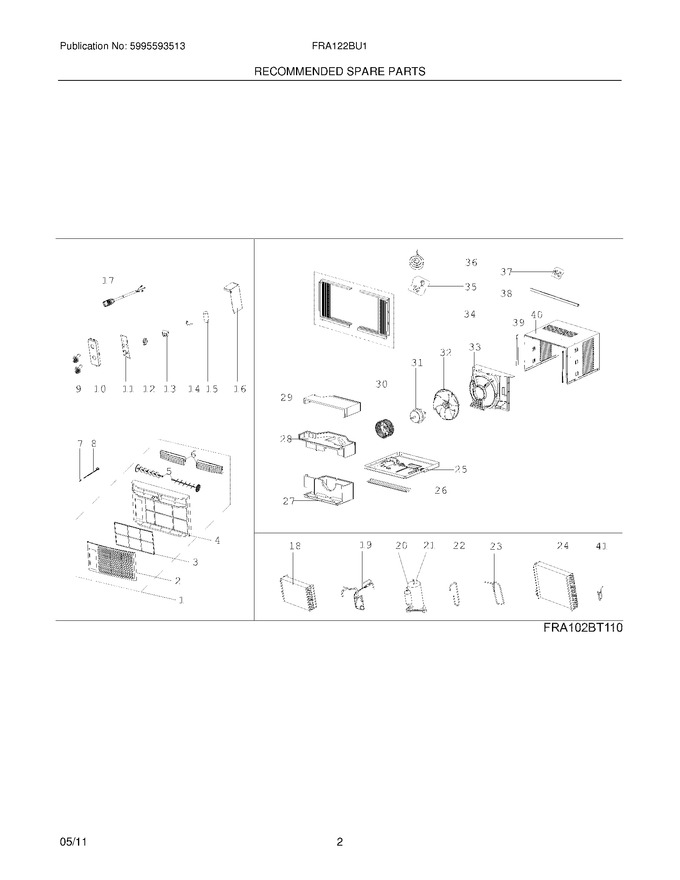

03 - Recommended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304482930		Panel,front		Appelez-nous	-
2	5304482738		Panel,grille ,front		Appelez-nous	-
3	5304482739		Filter		Appelez-nous	-
4	5304482740		Frame,assy ,front		Appelez-nous	-
7	5304476801		Sleeve,vent Door Assy ,guide		Appelez-nous	-
8	5304482753		Door,ventilation		Appelez-nous	-
9	5304472217		Knob Assembly,control ,w/spring				$ 34.44
10	5304476763		Control Panel,with Overlay		Appelez-nous	-
11	5304476764		Cover,control Box		Appelez-nous	-
14	5304471203		Strap,capacitor Clamp		Appelez-nous	-
16	5304476767		Control Box		Appelez-nous	-
25	5304482931		Base,pan Assembly		Appelez-nous	-
26	5304476775		Rail,shutter Track ,bottom		Appelez-nous	-
27	5304476776		Scroll,blower Housing ,bottom		Appelez-nous	-
28	5304476777		Scroll,blower Housing ,middle		Appelez-nous	-
29	5304476778		Scroll,blower Housing ,top		Appelez-nous	-
30	5304476779		Blower Wheel,centrifugal Fan		Appelez-nous	-
33	5304482617		Shroud,condensor Fan		Appelez-nous	-
34	5304472208		Window Filler Kit,slider Panels		Appelez-nous	-
35	5304472192		Hardware,mounting ,screws/locks				$ 8.49
36	5304472211		Seal Kit,foam ,sash Filler				$ 36.12
37	5304472191		Screw Kit,top Rail Mount				$ 16.22
38	5304472210		Rail,shutter Track ,top		Appelez-nous	-
39	5304472209		Retainer,shutter ,cabinet Sides				$ 11.48
40	5304476783		Cabinet,wrapper/sleeve		Appelez-nous	-
F12	5304476765		Sensor Assembly,temperature				$ 91.72
F13	5304476766		Switch,master ,rotary		Appelez-nous	-
F15	5304471300		Capacitor		Appelez-nous	-
F17	5304476768		Power Cord,lcdi ,test/reset				$ 177.82
F18	5304482642		Evaporator		Appelez-nous	-
F19	5304482643		Tube,capillary		Appelez-nous	-
F20	5304482644		Compressor		Appelez-nous	-
F21	5304482645		Overload Protector		Appelez-nous	-
F22	5304482624		Tube,suction		Appelez-nous	-
F23	5304482646		Tube,discharge		Appelez-nous	-
F24	5304482647		Condenser		Appelez-nous	-
F31	5304482622		Motor,fan				$ 290.72
F32	5304504802		Fan Blade,axial   (Replaces: 5304476059)		Appelez-nous	-
F41	5304476367		Drier-filter				$ 45.55
F5	5304476761		Louver,vertical		Appelez-nous	-
F6	5304476762		Louver,horizontal		Appelez-nous	-
