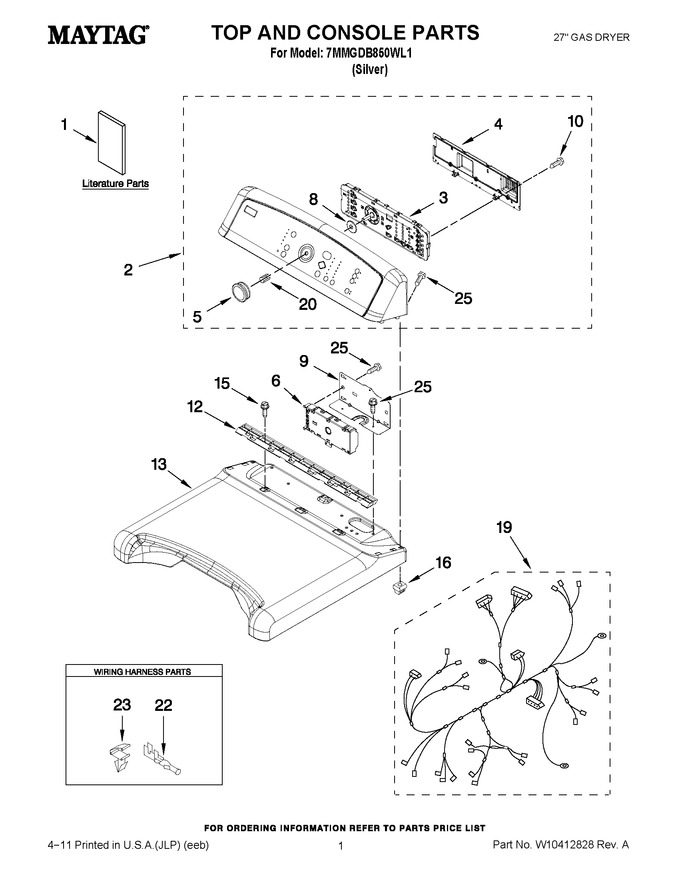

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8557891 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10156734 | Tech, Sheet |
|
- | |||||
| 1 | W10321810 | Guide, Use & Care |
|
- | |||||
| 2 | W10252469 | Console Assembly |
|
$ 440.84 | |||||
| 3 | W10336131 | Assembly, User Interface |
|
$ 277.33 | |||||
| 4 | W10051124 | Cover, Ui-assembly |
|
$ 263.67 | |||||
| 5 | WPW10051126 | Knob Assembly (Replaces: W10051126) |
|
$ 53.77 | |||||
| 6 | W10111620 | Control Electronic |
|
$ 337.82 | |||||
| 8 | 8572039 | Seal-ui |
|
- | |||||
| 9 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 10 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 12 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 13 | W10283289 | Top User Interface |
|
$ 201.24 | |||||
| 15 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 83.71 | |||||
| 16 | W10112673 | Clip, Console |
|
$ 9.75 | |||||
| 19 | W10319803 | Harness, Wiring Main |
|
- | |||||
| 20 | W10153920 | Spring, Knob |
|
- | |||||
| 22 | 94613 | Terminal |
|
- | |||||
| 23 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 25 | W10131402 | Screw |
|
- |
