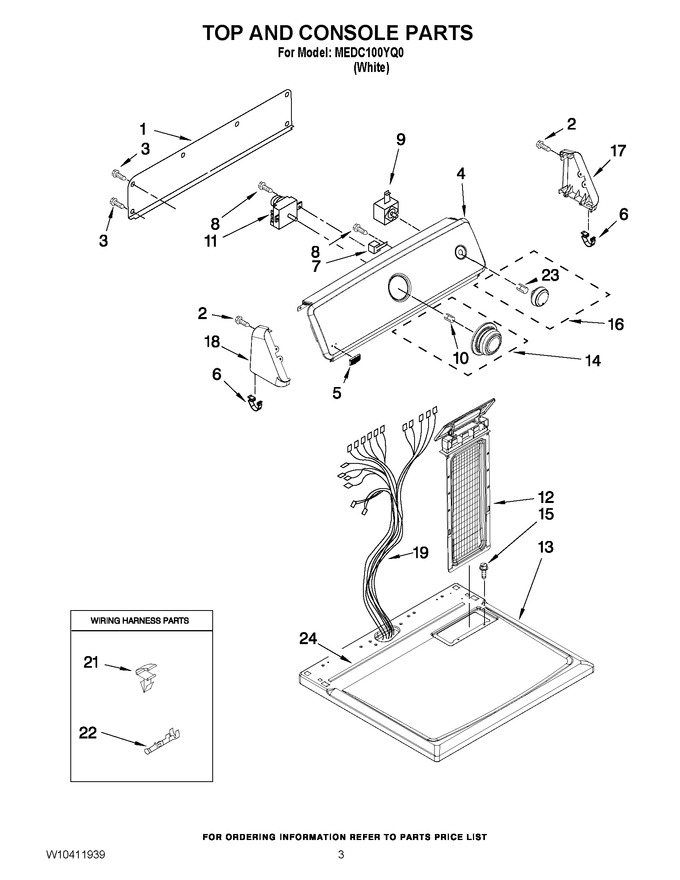

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console				$ 135.31
2	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	W10295288		Console Panel & Bracket Assembly (includes Item 5)		Appelez-nous	-
5	W10323734		Badge, Assembly				$ 63.95
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
9	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 115.10
10	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
11	W10894766		Timer, 60 Hz.   (Replaces: W10185988)			Immediately	$ 383.92
12	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
13	WPW10225059		Top (includes Seal)   (Replaces: W10225059)				$ 250.69
14	WPW10317454		Knob Assembly, Timer   (Replaces: W10317454)				$ 63.47
15	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
16	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 63.33
17	WPW10193821		Endcap (r.h.)   (Replaces: W10193821)				$ 74.72
18	WPW10193824		Endcap (l.h.)   (Replaces: W10193824)				$ 74.39
19	W10366759		Harness, Wiring		Appelez-nous	-
21	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
22	WP94614		Terminal   (Replaces: 94614)				$ 8.05
23	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
24	W10316616		Foam Seal				$ 27.79

    View Diagram in Separate Window       Print Part List
