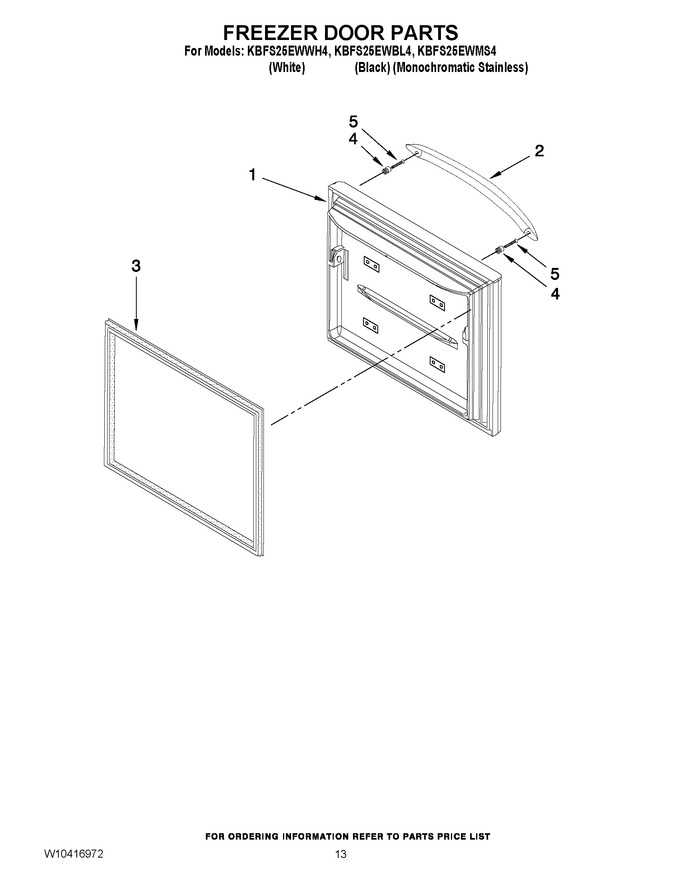

07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977864WQ		Door, Freezer (white)   (Replaces: 12977817LGW)				$ 1,080.85
1	12977865BQ		Door, Freezer (black)   (Replaces: 12977838B)				$ 1,010.48
1	12977841S		Door, Freezer (stainless)		Appelez-nous	-
2	WPW10314520K		Handle, Door (white)   (Replaces: W10314520)				$ 241.66
2	W10314521		Handle, Door (black)		Appelez-nous	-
2	WPW10314522K		Handle, Door (stainless)   (Replaces: W10314522)				$ 280.70
3	W10443319		Gasket, Door (white)   (Replaces: W10164040)				$ 281.76
3	W10436252		Gasket, Door (black)   (Replaces: W10164041)			Immediately	$ 362.28
3	W10443320		Gasket, Door (apollo Grey)   (Replaces: W10164042)			Immediately	$ 125.25
4	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
5	W10290759		Screw, Mount				$ 5.83
