SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Internal Oven Parts

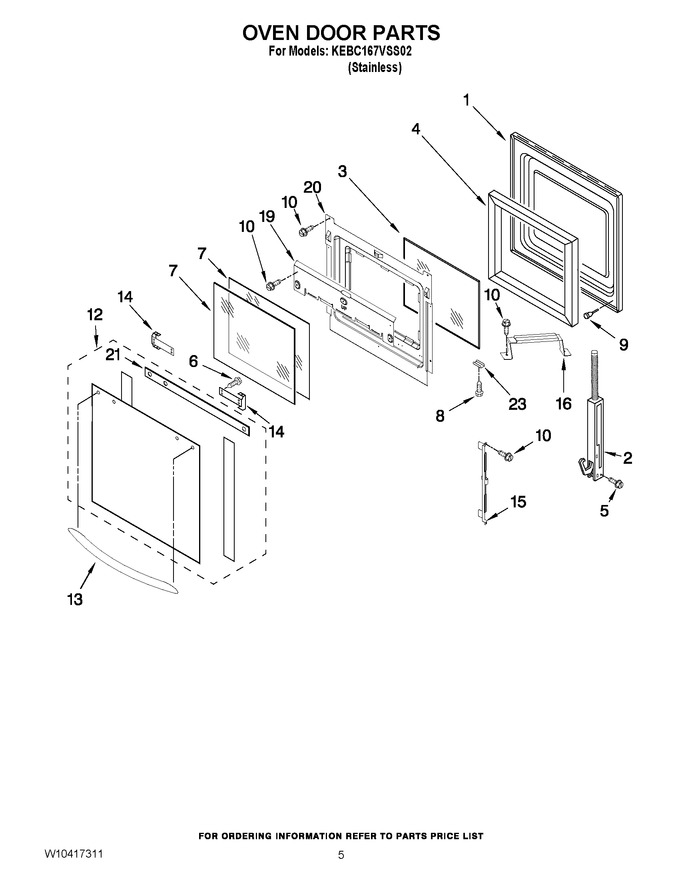

04 - Oven Door Parts


05 - Top Venting Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300152		Door Liner				$ 148.16
2	WP9760574		Hinge, Door (left)   (Replaces: 9760580)			Immediately	$ 67.07
2	WP9760579		Hinge, Door (right)   (Replaces: 9760579)			Immediately	$ 71.50
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	8300797		Insulation, Door				$ 72.37
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
8	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
9	4448520		Bumper, Door				$ 22.25
10	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
12	W10194367		Assembly, Door Glass		Appelez-nous	-
13	W10199976		Door Handle		Appelez-nous	-
14	4455804		Bracket, Handle (left)				$ 25.95
14	4455803		Bracket, Handle (right)				$ 30.70
15	WP9759229		Bracket(2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket(3rd Glass)				$ 36.30
19	8301089		Shield, Heat		Appelez-nous	-
20	8300190		Retainer, Glass		Appelez-nous	-
21	8300153		Seal, Door Top		Appelez-nous	-
23	W10158497		Retainer, Clip				$ 5.65

    View Diagram in Separate Window       Print Part List
