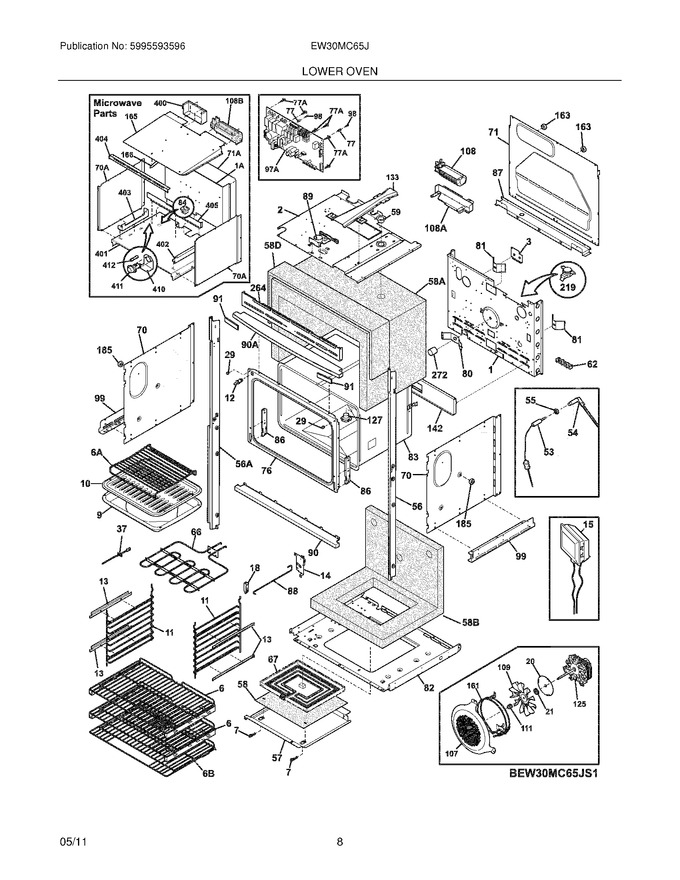

07 - Lower Oven


09 - Doors


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258922		Shield,insulation ,upper		Appelez-nous	-
3	318402800		Plate,cover				$ 9.23
6	318903105		Shelf,oven ,(2)				$ 416.08
7	318368300		Pin,locking ,(2)				$ 9.93
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318903300		Rack,oven Shelf ,(2)				$ 105.80
12	316445501		Switch,oven Light ,door Frame			Immediately	$ 100.01
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
18	318562300		Bracket,rod				$ 16.87
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 25.28
29	316517600		Spacer,oven Door				$ 13.39
55	316247700		Nut,mounting				$ 20.22
56	318903632		Trim,side Filler ,white ,rh		Appelez-nous	-
57	318361610		Panel,service				$ 89.82
58	318330501		Insulation,service Panel ,12.47 X 14.77				$ 35.32
59	318072577		Duct,oven Vent				$ 18.11
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 29.66
70	318259114		Shield,insulation ,sides ,(2)				$ 96.81
71	318260007		Panel,rear Box				$ 102.90
76	318056298		Front,oven		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258775		Shield,insulation ,lower				$ 116.87
83	318261427		Liner,oven Assy		Appelez-nous	-
86	318241408		Receptacle,hinge ,(2)				$ 47.41
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
88	318376505		Rod,latch				$ 13.72
90	318903511		Trim,oven Bottom ,white		Appelez-nous	-
91	318905122		End Cap,middle Trim ,white ,(2)		Appelez-nous	-
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
99	318256201		Bracket,side ,bottom ,(2)				$ 63.00
107	318906601		Cover,fan				$ 225.14
109	318398302		Fan Blade			Immediately	$ 32.34
111	316136600		Nut,fan Retainer			Immediately	$ 21.26
127	318357001		Adapter Assembly,w/vent Tube ,and Catalyst				$ 50.66
133	318347800		Chimney		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
165	318381741		Shield,heat ,base		Appelez-nous	-
166	318577001		Deflector,divider		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 14.18
264	318257766		Trim,oven ,black ,front				$ 163.17
272	318249409		Tube,protector		Appelez-nous	-
400	318576901		Box,cooling Duct		Appelez-nous	-
401	318297208		Plate,support ,microwave ,30``		Appelez-nous	-
402	318406707		Bracket,attachment		Appelez-nous	-
403	318407603		Bracket,attachment		Appelez-nous	-
404	318410506		Trim,vent ,black		Appelez-nous	-
405	318935102		Panel,back Filler		Appelez-nous	-
410	318933901		Bracket,fuse		Appelez-nous	-
1A	318259217		Back,main ,upper Oven		Appelez-nous	-
56A	318903633		Trim,side Filler ,white ,lh		Appelez-nous	-
58A	318386100		Insulation,oven Wrapper		Appelez-nous	-
58B	318362100		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318908006		Shelf,oven   (Replaces: 318908003)			Immediately	$ 258.79
70A	318259116		Shield,insulation ,sides ,(2)		Appelez-nous	-
71A	318260011		Panel,rear Box ,upper		Appelez-nous	-
77A	316114100		Spacer				$ 67.73
90A	318934601		Trim,middle ,black				$ 248.12
F108	318073038		Motor,blower				$ 285.08
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower				$ 301.88
F125	5304463302		Motor,fan   (Replaces: 318398201)			Immediately	$ 288.83
F14	318562200		Sensor Assy,w/switch ,and Bracket				$ 286.65
F161	318255511		Element,convection ,2500 W			Immediately	$ 122.44
F219	318004902		Switch,thermal			Immediately	$ 79.38
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 53.48
F411	318647300		Holder,fuse   (Replaces: 318576200)			Immediately	$ 241.92
F412	318647300		Fuse,20 Amp   (Replaces: 318576100)			Immediately	$ 241.92
F53	5304504202		Probe,meat Temp   (Replaces: 318601302)			Immediately	$ 117.99
F54	318601206		Receptacle,probe			Immediately	$ 190.58
F66	318255806		Element,broil ,4000w				$ 313.43
F67	318601604		Element,hidden Bake ,upper Oven   (Replaces: 318601601)			Immediately	$ 289.31
F84	5304517286		Outlet,electrical ,miniature ,black   (Replaces: 318146843)				$ 101.12
F89	318261217		Motor,latch Assy		Appelez-nous	-
F97A	316570510		Board,relay				$ 247.55
FNI	318572707		Harness,wiring ,latch		Appelez-nous	-
FNI	318532191		Harness,wiring ,main				$ 184.22
FNI	318946400		Bulb,halogen ,g9 ,40w ,120v			Immediately	$ 54.80
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 193.81
FNI	318231870		Wiring Harness,bake Element				$ 92.69
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	318373001		Bracket,receptacle ,temp Probe				$ 9.87
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 16.01
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 16.85
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 17.69
NI	5304456367		Rivet,ladder Bracket ,(8)				$ 13.99
NI	5304435874		Plate,covering ,probe		Appelez-nous	-
NI	5304537066		Lubricant,high Temp ,oven Racks   (Replaces: 5304469602)				$ 47.36
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 14.96
NI	316247800		Washer,lock ,mtg				$ 20.22
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 12.60
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	318165800		Spacer				$ 19.69
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 16.54
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.36
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 15.75
