SELECT A DIAGRAM

01 - Cover

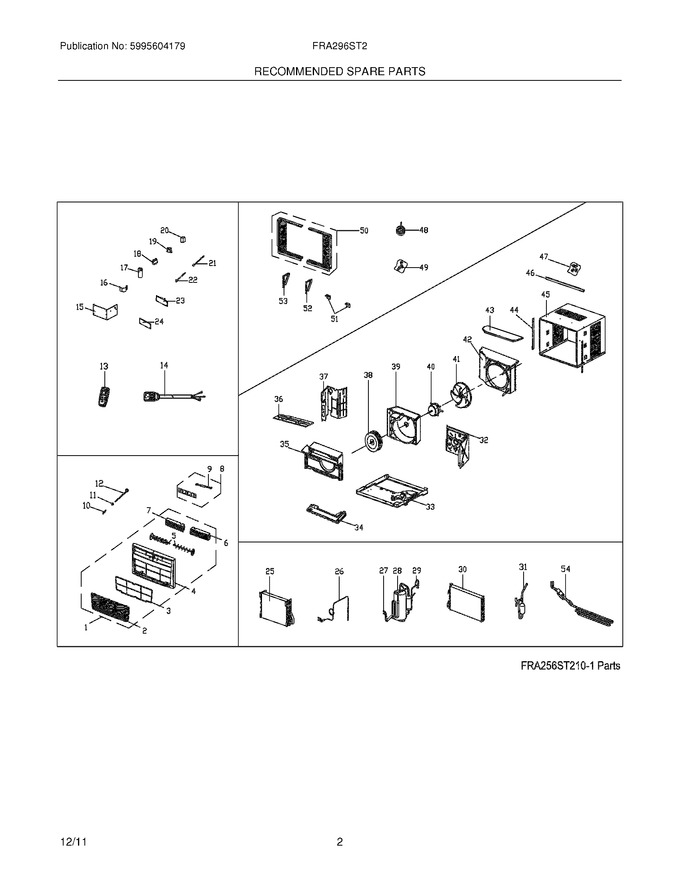

03 - Recommended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304477143		Panel,front Grille ,tilt-out		Appelez-nous	-
4	5304477183		Panel,frame ,front		Appelez-nous	-
15	5304476248		Control Box		Appelez-nous	-
16	5304476249		Strap,capacitor Clamp		Appelez-nous	-
24	5304476251		Holder,mounting Plate ,control		Appelez-nous	-
32	5304472351		Bulkhead,partition ,front/right		Appelez-nous	-
33	5304476258		Base,unit Chassis		Appelez-nous	-
34	5304472343		Tray,drip Pan ,foam		Appelez-nous	-
35	5304476259		Scroll,blower Housing ,front		Appelez-nous	-
36	5304482506		Cover,front Board		Appelez-nous	-
37	5304476261		Bulkhead,partition ,front/left		Appelez-nous	-
39	5304476262		Scroll,blower Housing ,rear		Appelez-nous	-
42	5304472355		Shroud,condenser/fan		Appelez-nous	-
43	5304472354		Cover,condenser/fan ,rear		Appelez-nous	-
44	5304476263		Retainer,shutter ,cabinet Sides		Appelez-nous	-
45	5304482507		Cabinet,wrapper/sleeve		Appelez-nous	-
46	5304476265		Rail,shutter Track ,top Channel		Appelez-nous	-
47	5304472364		Screw Kit,top Rail Mount		Appelez-nous	-
48	5304472366		Seal Kit,foam ,sash & Rails		Appelez-nous	-
49	5304476266		Hardware,mounting ,screws/locks		Appelez-nous	-
50	5304476267		Window Filler Kit,slider Panels ,accordion		Appelez-nous	-
51	5304472360		Bracket,sill Angle		Appelez-nous	-
52	5304482508		Bracket,mounting ,right Window		Appelez-nous	-
53	5304482509		Bracket,mounting ,left Window		Appelez-nous	-
F1	5304477182		Front Assembly,complete Panel		Appelez-nous	-
F10	5304476243		Handle,vent Control		Appelez-nous	-
F11	5304476244		Link,lever/vent Door ,detente		Appelez-nous	-
F12	5304477149		Door,vent Control ,with Lever		Appelez-nous	-
F13	5304501878		Remote Control,transmitter   (Replaces: 5304476851)				$ 102.58
F14	5304476312		Power Cord,electric ,lcdi		Appelez-nous	-
F17	5304472621		Capacitor,compressor		Appelez-nous	-
F18	5304521130		Capacitor,fan Motor   (Replaces: 5304482883)		Appelez-nous	-
F19	5304535831		Transformer   (Replaces: 5304471063)		Appelez-nous	-
F20	5304472418		Ionizer,anion Generator		Appelez-nous	-
F21	5304471276		Sensor,temperature ,ambient				$ 33.88
F22	5304512375		Sensor,temperature ,evaporator   (Replaces: 5304471383)				$ 33.16
F23	5304476951		Pc Board,main ,control/power		Appelez-nous	-
F25	5304483009		Evaporator		Appelez-nous	-
F26	5304483010		Tube,capillary		Appelez-nous	-
F27	5304521155		Tube,suction   (Replaces: 5304483011)		Appelez-nous	-
F28	5304477187		Compressor		Appelez-nous	-
F29	5304477188		Tube,discharge		Appelez-nous	-
F3	5304535829		Filter,air ,plastic Frame   (Replaces: 5304477144)				$ 8.69
F30	5304477189		Condenser				$ 572.93
F31	5304476257		Drier-filter		Appelez-nous	-
F38	5304477190		Blower Wheel,centrifugal Fan		Appelez-nous	-
F40	5304472353		Motor,fan		Appelez-nous	-
F41	5304538708		Fan Blade,axial Flow   (Replaces: 5304472356)				$ 50.16
F5	5304477146		Louver,vertical		Appelez-nous	-
F54	5304484940		Tube,condensate Evap ,drain Pan		Appelez-nous	-
F6	5304477147		Louver,horizontal ,right		Appelez-nous	-
F7	5304477148		Louver,horizontal ,left		Appelez-nous	-
F8	5304483709		Pc Board,display/input		Appelez-nous	-
F9	5304482877		Wire,connector ,pc Boards		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
