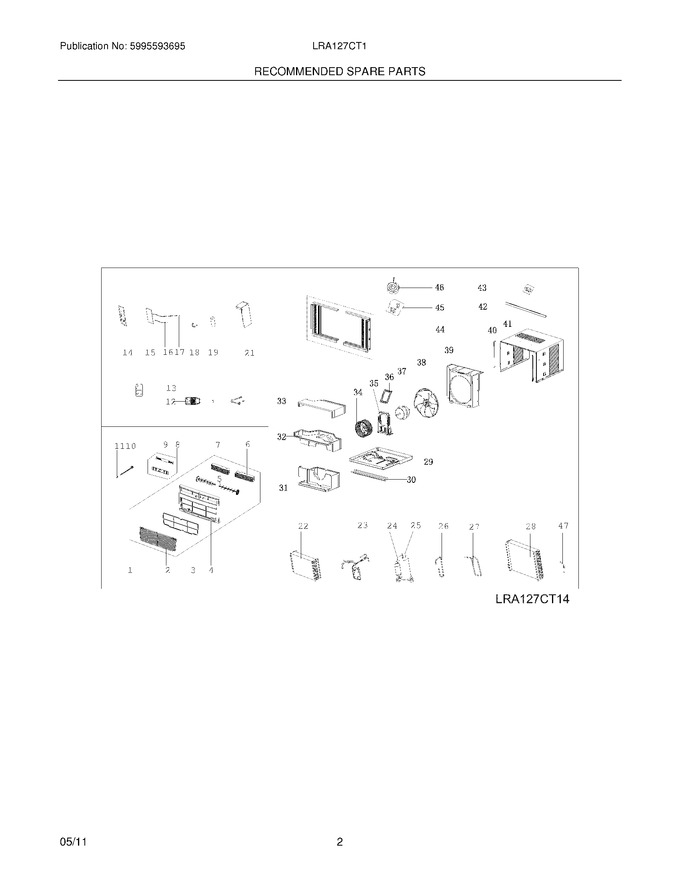

| 1 | 5304476859 | Front Assembly,complete Panel |
|
- | |||||
| 2 | 5304476860 | Panel,front Grille ,tilt-out |
|
- | |||||
| 3 | 5304476861 | Filter,air ,plastic Frame |
|
- | |||||
| 4 | 5304476862 | Frame,front Assembly |
|
$ 24.65 | |||||
| 5 | 5304476863 | Louver,vertical |
|
- | |||||
| 6 | 5304476864 | Louver,horizontal ,left |
|
- | |||||
| 7 | 5304476865 | Louver,horizontal ,right |
|
- | |||||
| 9 | 5304482356 | Wire |
|
- | |||||
| 14 | 5304476182 | Cover,control Box |
|
- | |||||
| 18 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 21 | 5304476225 | Control Box |
|
- | |||||
| 29 | 5304476189 | Base,unit Chassis |
|
- | |||||
| 30 | 5304476190 | Rail,shutter Track ,bottom |
|
- | |||||
| 31 | 5304476191 | Scroll,blower Housing ,bottom |
|
- | |||||
| 32 | 5304476192 | Scroll,blower Housing ,middle |
|
- | |||||
| 33 | 5304476193 | Scroll,blower Housing ,top |
|
- | |||||
| 35 | 5304476194 | Support,motor Mount ,left |
|
- | |||||
| 36 | 5304476195 | Support,motor Mount ,right |
|
- | |||||
| 39 | 5304476196 | Shroud,condenser/fan |
|
- | |||||
| 40 | 5304476197 | Retainer,shutter ,cabinet Sides |
|
$ 9.87 | |||||
| 41 | 5304476198 | Cabinet,wrapper/sleeve |
|
- | |||||
| 42 | 5304476843 | Rail,shutter Track ,top |
|
- | |||||
| 43 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 44 | 5304476200 | Window Filler Kit,slider Panels ,accordion |
|
$ 111.99 | |||||
| 45 | 5304472192 | Hardware,mounting ,screws/locks |
|
$ 8.49 | |||||
| 46 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| F10 | 5304476178 | Door,vent Control ,with Lever |
|
- | |||||
| F11 | 5304520877 | Sleeve,vent Door Assy ,guide (Replaces: 5304476179) |
|
- | |||||
| F12 | 5304476180 | Power Cord,electric ,lcdi |
|
$ 211.10 | |||||
| F13 | 5304476866 | Remote Control,transmitter |
|
$ 91.40 | |||||
| F15 | 5304476183 | Pc Board,main ,control/power |
|
- | |||||
| F16 | 5304521225 | Sensor,evap Temp ,thermistor (Replaces: 5304471275) |
|
- | |||||
| F17 | 5304476053 | Sensor,ambient Temp ,thermistor |
|
$ 28.93 | |||||
| F19 | 5304471300 | Capacitor |
|
- | |||||
| F22 | 5304476230 | Evaporator,with Cap Tube |
|
$ 323.00 | |||||
| F23 | 5304476868 | Tube,capillary |
|
- | |||||
| F24 | 5304475760 | Compressor,with Overload |
|
- | |||||
| F25 | 5304476297 | Overload Protector,compressor |
|
- | |||||
| F26 | 5304476236 | Tube,suction |
|
- | |||||
| F27 | 5304476237 | Tube,discharge |
|
- | |||||
| F28 | 5304476233 | Condenser |
|
$ 441.00 | |||||
| F34 | 5304476058 | Blower Wheel,centrifugal |
|
$ 70.98 | |||||
| F37 | 5304476057 | Motor,fan |
|
$ 299.20 | |||||
| F38 | 5304504802 | Fan Blade,axial (Replaces: 5304476059) |
|
- | |||||
| F47 | 5304476201 | Drier-filter |
|
$ 38.98 | |||||
| F8 | 5304476177 | Pc Board,display/input |
|
- |
