Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10352229 Refrigerator Door (includes Item 5) (black) Appelez-nous -
1 W10352231 Refrigerator Door (includes Item 5) (mono Stainless) Appelez-nous -
1 W10352226 Refrigerator Door (includes Item 5) (white) Appelez-nous -
1 W10352230 Refrigerator Door (includes Item 5) (mono Satina) Appelez-nous -
2 WPW10321304 Door Bin   (Replaces: W10321304) In-Stock Immediately $ 44.73

3 WPW10296816 Screw   (Replaces: W10296816) Special Order $ 8.06

4 WPW10296855 Door Bin, Shallow   (Replaces: W10296855) Special Order $ 79.15

5 WPW10249912 Door Gasket, Magnetic (black)   (Replaces: W10249912) Special Order $ 329.18

5 W10355582 Door Gasket, Magnetic (apollo Grey)   (Replaces: W10249916) Special Order $ 341.26

5 WPW10247884 Door Gasket, Magnetic (mist Beige)   (Replaces: W10247884) Special Order $ 322.97

6 WPW10670421 Handle (stainless/satina)   (Replaces: W10274730) Special Order $ 254.15

6 WPW10268056 Handle (white)   (Replaces: W10268056) Special Order $ 174.11

6 WPW10268057 Handle (black)   (Replaces: W10268057) Special Order $ 174.11

7 WP2182181 Thimble-top   (Replaces: 2200087) Special Order $ 8.15

8 WPW10170540 Stud, Handle   (Replaces: W10170540) In-Stock Immediately $ 8.51

9 WPW10257203 Door Closer, Upper Cam (apollo Grey)   (Replaces: W10257203) Special Order $ 12.96

9 WPW10248011 Door Closer, Upper Cam (white)   (Replaces: W10248011) Special Order $ 12.93

9 WPW10257201 Door Closer, Upper Cam (black)   (Replaces: W10257201) Special Order $ 12.93

10 WPW10296804 Screw   (Replaces: W10296804) Special Order $ 11.39

11 W11037957 Bracket, Door Stop (chrome)   (Replaces: W10247909) Special Order $ 80.24

12 WP2213265 Nameplate   (Replaces: 2255121) In-Stock Immediately $ 93.18

13 W11366418 Set Screw (chrome)   (Replaces: W10010140) In-Stock Immediately $ 15.79

13 WPW10010150 Set Screw (black)   (Replaces: W10010150) Special Order $ 8.57

14 W11661847 Cover, Door Stop (midnight Grey)   (Replaces: W10257218) In-Stock Immediately $ 31.71

14 W10257216 Cover, Door Stop (black) Appelez-nous -
14 W10789144 Cover, Door Stop (white)   (Replaces: W10248013) Special Order $ 19.38


    View Diagram in Separate Window     Print Icon   Print Part List

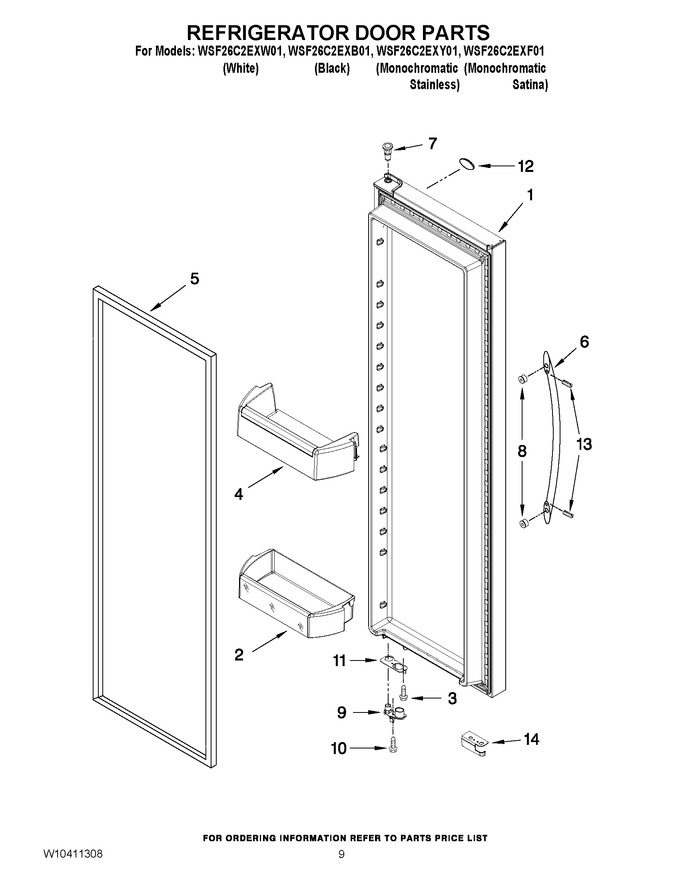

Diagram for WSF26C2EXY01
