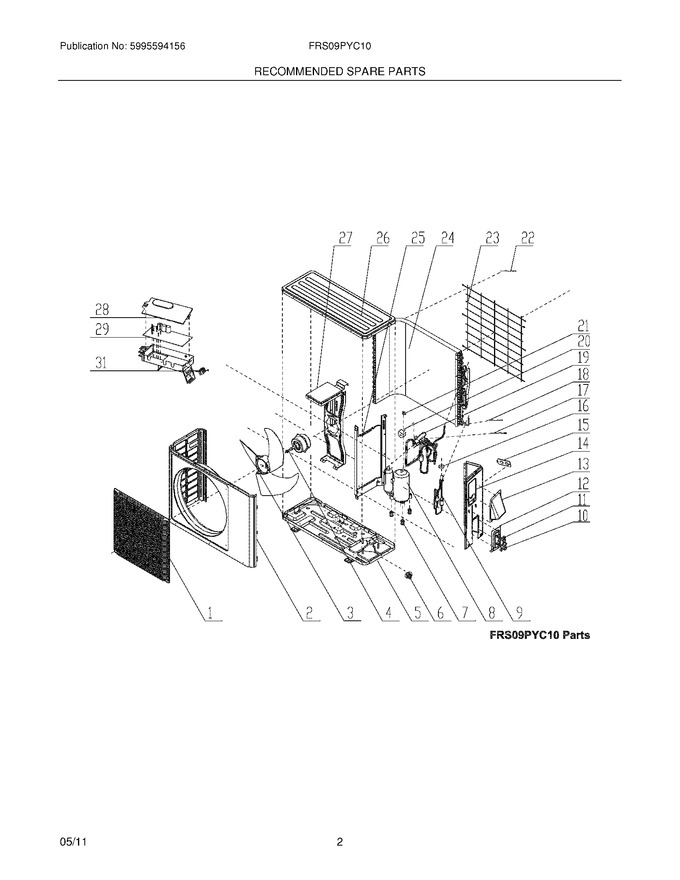

03 - Recommended Spare Parts


04 - Wiring Dia


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304482808		Grille,front		Appelez-nous	-
2	5304482868		Panel,front		Appelez-nous	-
5	5304482809		Base,unit Chassis		Appelez-nous	-
6	5304482867		Connector,drain		Appelez-nous	-
7	5304482813		Grommet,compressor		Appelez-nous	-
12	5304482863		Bracket,valve Support		Appelez-nous	-
13	5304483238		Cover,wiring		Appelez-nous	-
14	5304483239		Panel,right Side		Appelez-nous	-
15	5304482811		Plate,wiring Cover		Appelez-nous	-
23	5304482870		Grille,rear		Appelez-nous	-
25	5304482862		Bulkhead,partition		Appelez-nous	-
26	5304482806		Cover,top		Appelez-nous	-
27	5304482807		Bracket,motor Mount		Appelez-nous	-
28	5304482853		Cover,control Box		Appelez-nous	-
F10	5304482864		Valve,cut-off ,1/4		Appelez-nous	-
F11	5304482865		Valve,cut-off ,3/8		Appelez-nous	-
F16	5304482860		Coil,expansion Valve		Appelez-nous	-
F17	5304482858		Sensor,temp ,discharge Tube		Appelez-nous	-
F18	5304482859		Sensor,temp ,condenser Tube		Appelez-nous	-
F19	5304482861		Valve,4-way ,reversing		Appelez-nous	-
F20	5304482909		Coil,4-way Valve		Appelez-nous	-
F21	5304482814		Overload Protector,compressor		Appelez-nous	-
F22	5304482857		Sensor,ambient Temp ,outdoor		Appelez-nous	-
F24	5304482815		Condenser		Appelez-nous	-
F29	5304482855		Pc Board,main ,control/power				$ 553.09
F3	5304482869		Fan Blade,axial Flow				$ 78.76
F31	5304482856		Terminal Block,pcb Wiring		Appelez-nous	-
F4	5304482866		Motor,fan		Appelez-nous	-
F8	5304482812		Compressor		Appelez-nous	-
F9	5304482852		Valve,expansion ,capillary Tube		Appelez-nous	-
