SELECT A DIAGRAM

01 - Cover

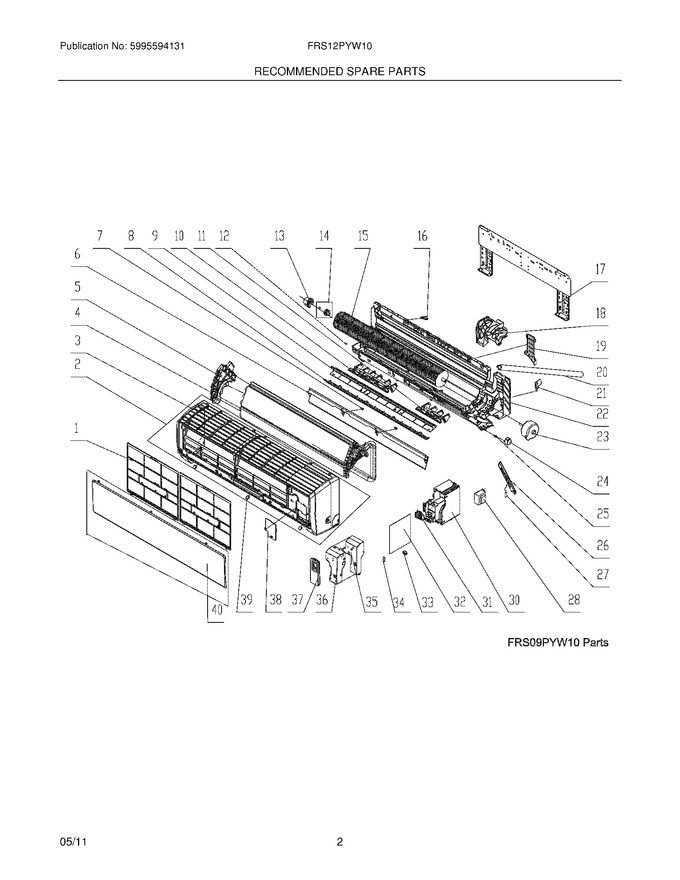

03 - Recommended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304482784		Front Assembly,complete Panel ,with 3,38,39		Appelez-nous	-
3	5304482785		Frame,front Assembly		Appelez-nous	-
5	5304482775		Support,evaporator		Appelez-nous	-
7	5304482906		Bushing,louver Shaft ,right		Appelez-nous	-
8	5304482783		Grille,air Vent		Appelez-nous	-
12	5304482905		Bushing,louver Shaft ,left		Appelez-nous	-
14	5304482778		O`ring,bearing ,gasket/seal				$ 25.41
16	5304482805		Drain Plug,drip Tray		Appelez-nous	-
17	5304483235		Plate,installation ,wall Mount		Appelez-nous	-
18	5304482793		Housing,motor Cover		Appelez-nous	-
19	5304482791		Clamp,drain Hose		Appelez-nous	-
21	5304483236		Clamp,power Cord		Appelez-nous	-
22	5304482773		Casing,rear		Appelez-nous	-
25	5304482907		Lever,louver Control ,crank		Appelez-nous	-
30	5304482799		Control Box		Appelez-nous	-
35	5304482795		Cover,control Box		Appelez-nous	-
36	5304482796		Shield,interference ,electrical		Appelez-nous	-
38	5304482797		Cover,control Box ,outside		Appelez-nous	-
39	5304482789		Cover,screws ,front Assembly		Appelez-nous	-
40	5304483237		Panel,front		Appelez-nous	-
F1	5304483233		Filter,air ,(2)		Appelez-nous	-
F10	5304482782		Louver,vertical ,left ,long		Appelez-nous	-
F11	5304482781		Louver,vertical ,right ,short		Appelez-nous	-
F13	5304482777		Bearing Block,housing ,w/o`ring				$ 10.61
F15	5304482776		Blower Wheel,cross Flow Fan				$ 89.62
F20	5304482780		Hose,drain		Appelez-nous	-
F23	5304482794		Motor,blower Fan		Appelez-nous	-
F24	5304482792		Motor,louver ,horizontal		Appelez-nous	-
F26	5304482802		Pc Board,display/input				$ 82.90
F27	5304459792		Sensor,ambient Temp ,thermistor				$ 64.16
F28	5304482800		Transformer		Appelez-nous	-
F31	5304482804		Terminal Block,4-bit		Appelez-nous	-
F32	5304482801		Pc Board,main ,control/power				$ 186.32
F33	5304483384		Connector,electrical ,jumper		Appelez-nous	-
F34	5304460537		Sensor,evaporator Temp ,defrost				$ 57.17
F37	5304482787		Remote Control,transmitter				$ 127.00
F4	5304483234		Evaporator		Appelez-nous	-
F6	5304482790		Louver,horizontal		Appelez-nous	-
F9	5304482779		Diffuser,air Vent ,main Louver		Appelez-nous	-
NI	5304483381		Holder,remote Control				$ 7.74

    View Diagram in Separate Window       Print Part List
