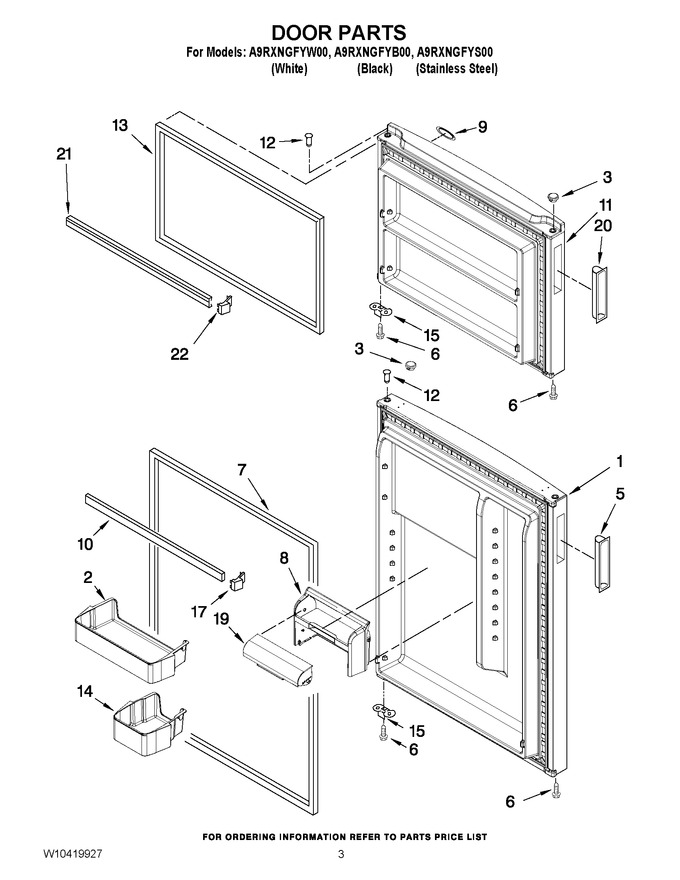

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10406230 | Refrigerator Door (stainless Steel) (Replaces: W10406230) |
|
- | |||||
| 1 | LW10406229 | Refrigerator Door (black) (Replaces: W10406229) |
|
- | |||||
| 1 | LW10406228 | Refrigerator Door (white) (Replaces: W10406228) |
|
$ 633.55 | |||||
| 2 | W10349244 | Bin Door |
|
- | |||||
| 3 | WP2212651 | Plug Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 3 | WP2212648 | Plug Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 5 | W10174743 | Handle Cup (black) |
|
$ 15.93 | |||||
| 5 | W10182940 | Handle Cup (white) |
|
$ 72.41 | |||||
| 6 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 7 | 2159057 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 7 | 2177305 | Door Gasket, Magnetic (black) (Replaces: 2202881) |
|
$ 274.07 | |||||
| 8 | W10308809 | Housing Compartment |
|
$ 35.60 | |||||
| 9 | 2325418 | Nameplate |
|
$ 44.68 | |||||
| 10 | W10308872 | Trim, Door Shelf |
|
- | |||||
| 11 | LW10406247 | Freezer Door (white) (Replaces: W10406247) |
|
$ 630.33 | |||||
| 11 | LW10406249 | Freezer Door (stainless Steel) (Replaces: W10406249) |
|
- | |||||
| 11 | W10406248 | Freezer Door (black) |
|
- | |||||
| 12 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 13 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 225.08 | |||||
| 13 | 2159327 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 14 | W10349245 | Bin Door |
|
- | |||||
| 15 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 17 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 17 | W10308871 | Endcap Trim Rs |
|
$ 10.44 | |||||
| 19 | WPW10308843 | Compartment Door (Replaces: W10308843) |
|
$ 78.98 | |||||
| 20 | W10182940 | Handle Cup (white) |
|
$ 72.41 | |||||
| 20 | W10174743 | Handle Cup (black) |
|
$ 15.93 | |||||
| 21 | W10469910 | Trim, Door (Replaces: W10308873) |
|
$ 164.72 | |||||
| 22 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 22 | W10308871 | Endcap Trim Rs |
|
$ 10.44 |
