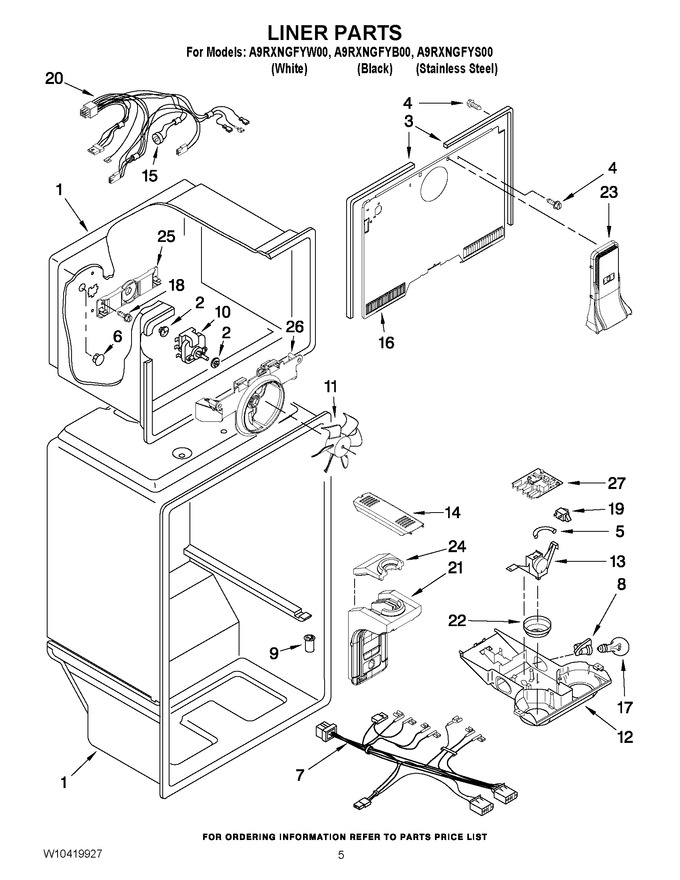

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP2264462		Grommet   (Replaces: 2197380)			Immediately	$ 46.17
3	WP2254360		Gasket, Evaporator Cover   (Replaces: 2254359)				$ 28.12
4	WP489478		Screw   (Replaces: 489478)				$ 8.18
5	WP2196003		Thermostat Tube Barrier   (Replaces: W10381575)				$ 8.35
6	WP941839		Hole Plug   (Replaces: 941839)				$ 8.03
7	W10318068		Wire Assy. Control Box				$ 132.58
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
9	WP2210509		Valve, Release   (Replaces: 2210509)				$ 99.15
10	WPW10189703		Fan Motor   (Replaces: W10208121)			Immediately	$ 70.17
11	WP2163777		Fan Blade   (Replaces: 2200509)			Immediately	$ 66.15
12	W10394915		Control Box				$ 67.85
13	WPW10584888		Thermostat   (Replaces: W10357190)			Immediately	$ 197.80
14	WPW10348614		Light Cover, Rc   (Replaces: W10348614)				$ 117.96
15	WPW10392132		Defrost, Bi-metal   (Replaces: W10392132)			Immediately	$ 9.05
16	W10385128		Cover, Evaporator				$ 82.68
17	W10887190		Light Bulb   (Replaces: W10311528)			Immediately	$ 19.23
18	WP488163		Screw   (Replaces: 488208)				$ 7.92
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 39.09
20	W10339629		Wire Assembly, Freezer Compartment (includes Item 15)		Appelez-nous	-
21	W10376137		Air Diffuser Assembly		Appelez-nous	-
22	W10396462		Knob, Thermostat		Appelez-nous	-
23	W10394363		Air Tower		Appelez-nous	-
24	WPW10319850		Air Diffuser, Bottom   (Replaces: W10319850)				$ 746.77
25	2254454		Bracket, Fan Back			Immediately	$ 75.44
26	W10850162		Bracket Fan Motor   (Replaces: W10321162)			Immediately	$ 32.47
27	WPW10352689		Elec. Control, Defrost   (Replaces: W10352689)				$ 299.70
