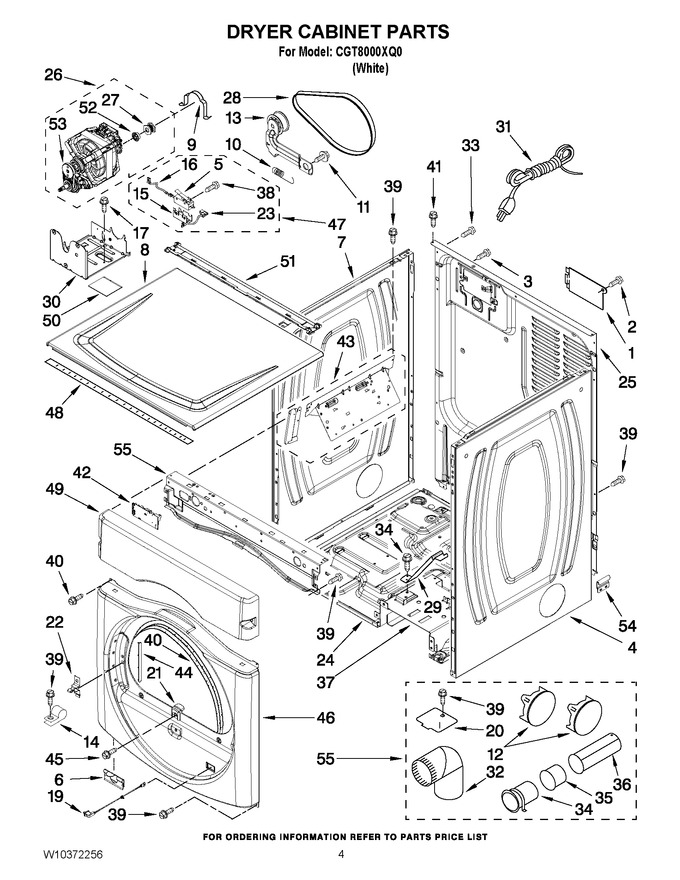

01 - Control Panel Parts


02 - Dryer Cabinet Parts


03 - Bulkhead And Blower Parts


04 - Dryer Door Parts


05 - Washer Door Parts


06 - Washer Cabinet Parts


07 - Dispenser Parts


08 - Tub And Basket Parts


09 - W10135231 Burner Assembly


10 - Pump And Motor Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 8.20
4	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 350.58
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 104.11
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 350.58
8	WPW10336080		Top   (Replaces: 8563730)				$ 331.99
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
13	WPW10344192		Idler Assembly   (Replaces: W10344192)			Immediately	$ 94.57
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	8564011		Bracket, Switch				$ 19.08
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	WP681414		Screw, 8-18 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
19	W10128087		Assembly, Door Switch				$ 95.53
20	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
21	8565083		Ramp, Door		Appelez-nous	-
22	WP8565122		Strike, Door (1)   (Replaces: 8565122)			Immediately	$ 8.65
23	8539892		Wire Motor (to Belt Switch)		Appelez-nous	-
24	W11116960		Base, Cabinet   (Replaces: W10198309)		Appelez-nous	-
25	8565059		Panel, Rear				$ 244.90
26	W11234001		Motor Assembly (60 Hz.)   (Replaces: W10139766)			Immediately	$ 433.87
27	WP8066184		Pulley   (Replaces: 3394341)			Immediately	$ 51.02
28	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
29	W10198376		Bracket, Burner		Appelez-nous	-
30	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 134.62
31	W11628810		Cord, Power   (Replaces: 3401401)				$ 101.90
32	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 28.16
33	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
34	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
35	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
36	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
37	W10133261		Vault Switch, Bracket		Appelez-nous	-
38	777849		Screw, 6-20 X 1.00   (Replaces: W10002600)				$ 7.36
39	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
40	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
41	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
42	WPW10376685		Control Board   (Replaces: W10376685)				$ 512.83
43	WP8563727		Control Bracket   (Replaces: 8563727)				$ 179.69
44	8565043		Plug, Strip Front Panel				$ 97.29
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
46	WPW10117421		Front Panel (includes Illus. 40)   (Replaces: W10117421)				$ 297.23
47	W11247665		Switch Assembly   (Replaces: W10155571)				$ 27.72
48	WP8318396A		Foam-seal (iec)   (Replaces: 8318396)				$ 39.71
49	W11674367		Enclosure-ccu Asm.   (Replaces: W10198363)				$ 203.84
50	W11113654		Sound Pad, Motor   (Replaces: W10212660)				$ 23.29
51	WPW10266747		Dryer, Water Channel   (Replaces: W10266747)				$ 73.96
52	WP3393657		Belt, Restrainer   (Replaces: 3393657)			Immediately	$ 139.08
53	WP3405160		Belt, Poly V   (Replaces: 3405160)			Immediately	$ 36.99
54	W10198373		Bracket-stack		Appelez-nous	-
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
