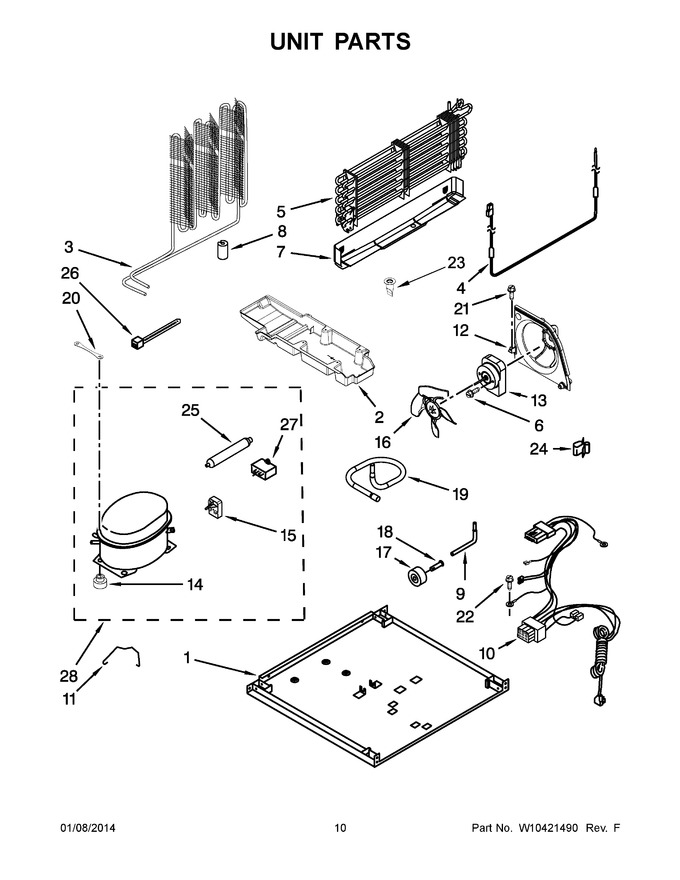

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Baseplate (Replaces: W10300118) |
|
$ 126.14 | |||||
| 2 | W10890667 | Tray, Drain (Replaces: W10466213) |
|
$ 136.76 | |||||
| 3 | WPW10414237 | Condenser (Replaces: W10414237) |
|
$ 271.80 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 232.12 | ||||
| 5 | WPW10314205 | Assembly, Evaporator (Replaces: W10314205) |
|
$ 325.25 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| 8 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.28 | |||||
| 9 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 97.75 | |||||
| 10 | W10405935 | Assembly, Unit Wire |
|
$ 154.68 | |||||
| 11 | W10204187 | Strap, Bale |
|
- | |||||
| 12 | WP2315541 | Baffle, Air (Replaces: 2315541) |
|
Immediately | $ 79.19 | ||||
| 13 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 111.76 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 80.29 | ||||
| 16 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 89.84 | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 19 | W10466682 | Tube, Suction |
|
$ 39.90 | |||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 18.73 | ||||
| 21 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 22 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 23 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 59.00 | ||||
| 24 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 25 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 51.42 | ||||
| 26 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 27 | WPW10662129 | Capacitor (Replaces: 2169373) |
|
Immediately | $ 52.97 | ||||
| 28 | W10309988 | Compressor (also Order 876765 Tube Kit) (Replaces: W10253005) |
|
Immediately | $ 528.56 | ||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge 3.88 Oz. (r134a) |
|
- |
