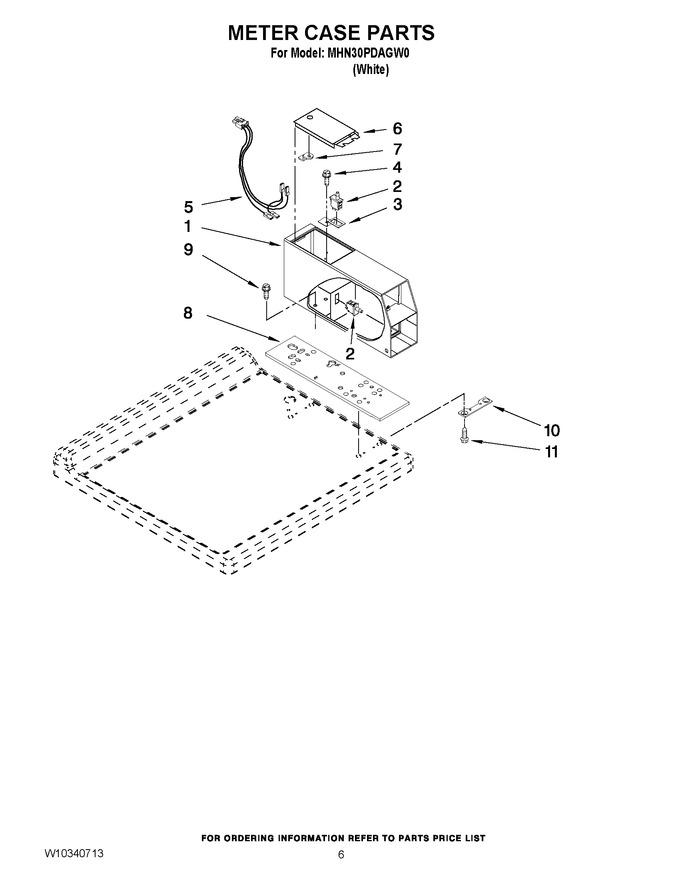

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10171128		Meter Case   (Replaces: W10171128)				$ 359.38
2	WPW10131838		Switch - Vault & Service Door   (Replaces: W10131838)				$ 25.11
3	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
4	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 8.03
5	W10847806		Wire Harness, Sensor Switch   (Replaces: W10139456)				$ 119.49
6	W11283272		Service Door Assembly   (Replaces: 3351136)				$ 111.17
7	W11401086		Cam - Lock   (Replaces: W10145154)				$ 6.17
8	W10137448		Cushion, Meter Case		Appelez-nous	-
9	W11715721		Screw, 5/16-24 X 1   (Replaces: 3349065)				$ 7.48
10	3347825		Plate, Meter Case Mounting		Appelez-nous	-
11	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
