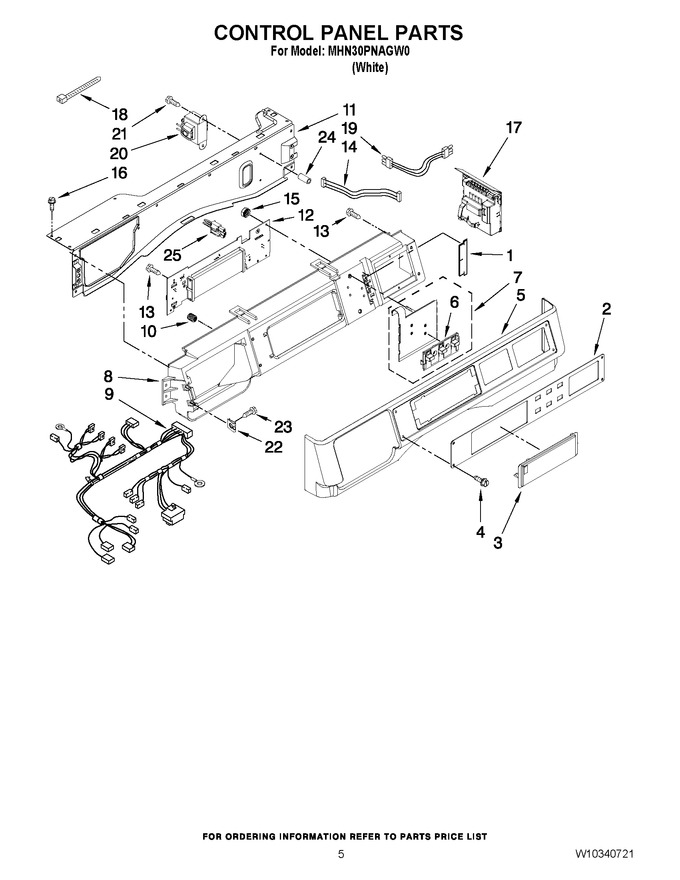

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187276		Seal, Console		Appelez-nous	-
2	W10313091		Facia / Overlay		Appelez-nous	-
3	W11637765		Cover, Display   (Replaces: W10267645)				$ 69.59
4	WPW10137457		Screw, 8-32 X 1/2   (Replaces: W10137457)				$ 7.85
5	W10779084		Console, Outer   (Replaces: W10137458)				$ 138.29
6	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 21.44
7	WPW10135389		Push Button & Switch Assembly   (Replaces: W10135389)				$ 146.60
8	W11028369		Console, Inner   (Replaces: W10137426)				$ 336.35
9	W10340894		Harness, Wiring (upper Main) Includes The Following Cable Sets:		Appelez-nous	-
10	WPW10189313		Insert   (Replaces: W10189313)				$ 9.23
11	W10294428		Bracket, Console		Appelez-nous	-
12	WPW10311755		User Interface   (Replaces: W10311755)			Immediately	$ 313.99
13	489136		Screw, 3-24 X 3/8				$ 10.80
14	W10155150		Harness, Test				$ 3.36
15	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 9.23
16	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 11.49
17	W10340566		Microcomputer, Machine Control		Appelez-nous	-
18	WP2205813		Cable Tie   (Replaces: 3429563)				$ 8.11
19	W11700546		Harness, Wiring (console Uic)   (Replaces: W10330606)				$ 19.38
20	W10751202		Transformer, 120 To 22.5 (vac)   (Replaces: W10205520)				$ 225.34
21	8540329		Screw, 8-18 X 7/16		Appelez-nous	-
22	WP9781235		Nut, U-type   (Replaces: 9781235)				$ 12.56
23	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 7.30
24	W10018050		Caplug		Appelez-nous	-
25	W11129439		Jumper, Service Vault Switch   (Replaces: W10133282)				$ 17.66
NI	W10340897		Ccu To Cold Fill Valve (4 Pole)		Appelez-nous	-
NI	W10340898		Ccu To Hot Fill Valve (2 Pole)		Appelez-nous	-
