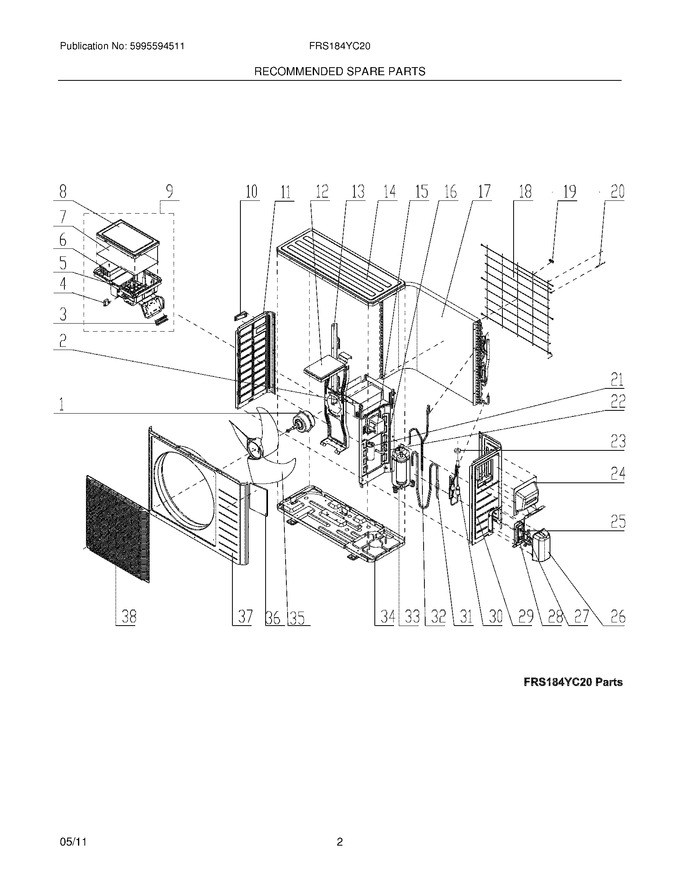

SELECT A DIAGRAM

01 - Cover


03 - Recommended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304483605		Control Box,flame Resistant		Appelez-nous	-
5	5304483670		Control Box		Appelez-nous	-
8	5304483673		Cover,control Box		Appelez-nous	-
10	5304483675		Handle,left		Appelez-nous	-
11	5304483676		Panel,left Side		Appelez-nous	-
12	5304483677		Bracket,motor Support		Appelez-nous	-
13	5304483678		Bracket,condenser ,support		Appelez-nous	-
14	5304483679		Cover,unit ,top		Appelez-nous	-
16	5304483680		Bulkhead,partition		Appelez-nous	-
18	5304483682		Grille,rear		Appelez-nous	-
19	5304483683		Clamp,wire		Appelez-nous	-
22	5304483686		Clamp,capacitor Strap		Appelez-nous	-
24	5304483688		Handle,right ,wiring Cover		Appelez-nous	-
26	5304483690		Cover,valve		Appelez-nous	-
28	5304483692		Bracket,valve Mount		Appelez-nous	-
29	5304483693		Panel,right Side		Appelez-nous	-
34	5304483698		Base,unit Chassis		Appelez-nous	-
36	5304483700		Plate,insulator ,control Box		Appelez-nous	-
37	5304483701		Panel,front		Appelez-nous	-
38	5304483702		Grille,front		Appelez-nous	-
F1	5304483604		Motor,fan		Appelez-nous	-
F15	5304483703		Filter,interference ,electronic		Appelez-nous	-
F17	5304483681		Condenser		Appelez-nous	-
F20	5304483684		Sensor Kitcontains Discharge Tube,condenser,andambient Temperature Sensors.				$ 99.94
F21	5304483685		Capacitor,compressor		Appelez-nous	-
F23	5304483687		Coil,expansion Valve				$ 135.71
F25	5304483689		Valve,cut-off ,1/4		Appelez-nous	-
F27	5304483691		Valve,cut-off ,1/2		Appelez-nous	-
F3	5304482856		Terminal Block,pcb Wiring		Appelez-nous	-
F30	5304483694		Valve,expansion ,capillary Tube		Appelez-nous	-
F31	5304483695		Tube,suction		Appelez-nous	-
F32	5304483696		Tube,discharge		Appelez-nous	-
F33	5304483697		Compressor,with Overload		Appelez-nous	-
F35	5304483699		Fan Blade,axial Flow				$ 72.72
F4	5304483669		Capacitor,fan Motor				$ 17.91
F6	5304483671		Heat Exchanger,sink		Appelez-nous	-
F7	5304483672		Pc Board,main ,control/power		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
