SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

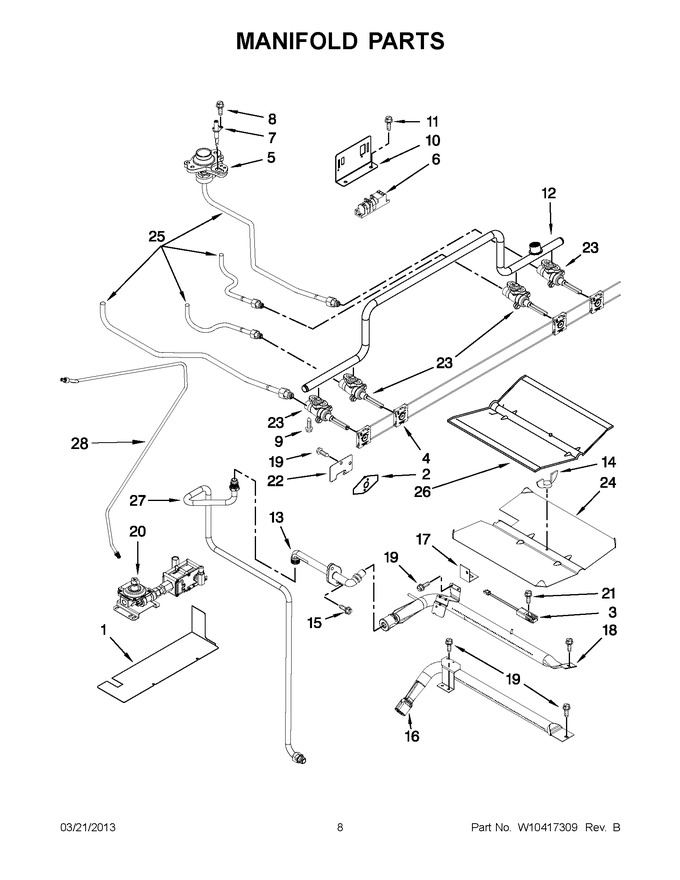

04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271712 | Cover, Burner Valve |
|
- | |||||
| 2 | 3605F269-45 | Plate, Broil Fitting |
|
- | |||||
| 3 | 74007498 | Ignitor, Electric Ignition (Replaces: 7432P106-60) |
|
Immediately | $ 87.11 | ||||
| 4 | W10165136 | Harness, Switch |
|
$ 193.05 | |||||
| 5 | WPW10407680 | Holder, Orifice (5k) (left Rear) (Replaces: 7527P084-60) |
|
$ 115.09 | |||||
| 5 | 7527P083-60 | Holder, Orifice (9.2k) (left Front & Right Rear) |
|
- | |||||
| 5 | 74010961 | Holder, Orifice (12k) (right Front) (Replaces: 7527P082-60) |
|
$ 113.33 | |||||
| 6 | WP7431P064-60 | Module, Spark (Replaces: 7431P064-60) |
|
$ 324.44 | |||||
| 7 | WP8523793 | Ignitor (Replaces: 7432M126-60) |
|
Immediately | $ 40.17 | ||||
| 8 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 9 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 10 | 3807F752-45 | Support, Spark Module |
|
$ 27.55 | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 12 | W10165140 | Pipe, Manifold |
|
- | |||||
| 13 | WP74010901 | Fitting, Broiler (Replaces: 7507P407-60) |
|
$ 87.75 | |||||
| 14 | 7103P030-60 | Wing Nut |
|
$ 7.43 | |||||
| 15 | WP3387230 | Screw (Replaces: 7101P502-60) |
|
Immediately | $ 8.54 | ||||
| 16 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 17 | 3807F480-45 | Support, Bake Burner |
|
$ 17.01 | |||||
| 18 | 7505P293-60 | Burner, Broiler |
|
$ 89.91 | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 20 | W10130932 | Valve, Safety (Replaces: 7501P231-60) |
|
Immediately | $ 389.94 | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 22 | 4005F421-45 | Cover,ignitor Wire |
|
- | |||||
| 23 | W10836481 | Valve, Burner (5k) (left Rear) (Replaces: W10290839) |
|
$ 138.93 | |||||
| 23 | W10300198 | Valve, Burner (9.2k) (left Front, Right Front & Right Rear) |
|
$ 114.90 | |||||
| 24 | 3601F307-45 | Baffle, Broil Burner |
|
$ 200.26 | |||||
| 25 | W10322984 | Tube, Burner (left Rear) |
|
- | |||||
| 25 | W10322982 | Tube, Burner (left Front) |
|
- | |||||
| 25 | W10322983 | Tube, Burner (right Rear) |
|
- | |||||
| 25 | W10322981 | Tube, Burner (right Front) |
|
- | |||||
| 26 | 3601F239-45 | Baffle, Bake Burner |
|
- | |||||
| 27 | 7506P301-60 | Tubing, Broiler Fitting To Valve |
|
- | |||||
| 28 | W10239288 | Tubing, Main Supply |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 7507P405-60 | Spuds, Lp Gas |
|
- |
