SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

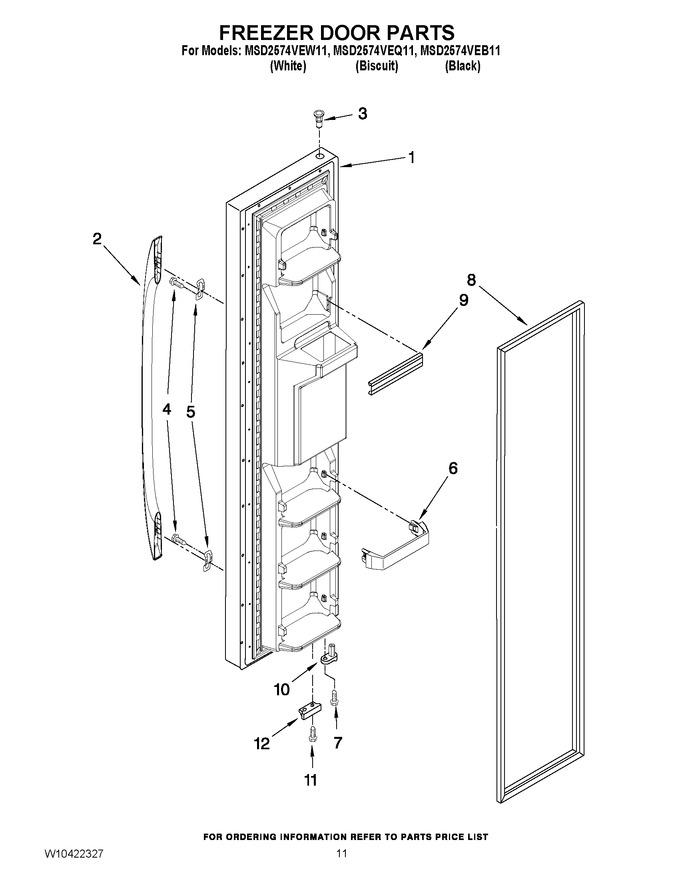

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10201132		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10201131		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10143854		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10296255		Handle (black)		Appelez-nous	-
2	W10170752		Handle (biscuit)   (Replaces: W10170748)		Appelez-nous	-
2	W10295712		Handle (white)		Appelez-nous	-
3	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
4	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
5	WP2255411		Trim, Handle   (Replaces: 2255411)				$ 36.55
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309532)				$ 325.70
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 24.27
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534W		Bracket, Door Stop (white)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
