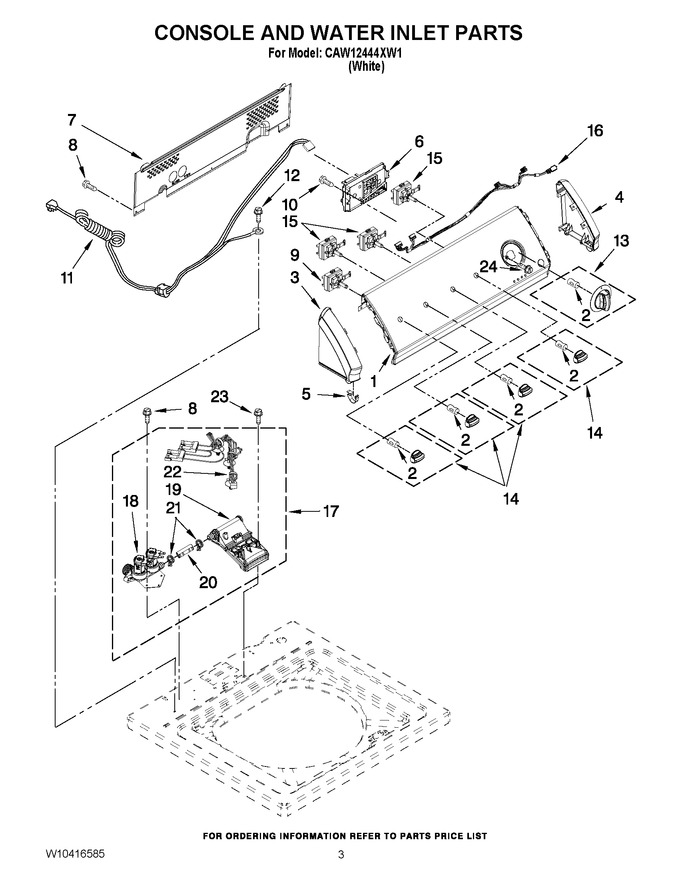

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10317198		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
3	WP8559502		Cap, End (l.h.) (includes Item 5)   (Replaces: 8559502)				$ 69.51
4	WP8559501		Cap, End (r.h.) (includes Item 5)   (Replaces: 8559501)				$ 69.30
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10394284		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10251310)				$ 251.29
8	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.86
9	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 181.40
10	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 155.63
12	W10846509		Screw, Power Cord Ground   (Replaces: 3400076)			Immediately	$ 7.76
13	W10317457		Knob, Timer		Appelez-nous	-
14	W10317458		Knob, Control		Appelez-nous	-
15	WPW10285511		Switch, Rotary Encoder   (Replaces: W10285511)			Immediately	$ 173.43
16	WPW10291176		Harness, Upper   (Replaces: W10291176)				$ 165.04
17	WPW10432353		Inlet Assembly, Water   (Replaces: W10357184)				$ 241.37
18	WPW10356257		Valve, Water Mixing   (Replaces: W10352254)			Immediately	$ 156.32
19	WPW10441423		Vacuum Break   (Replaces: W10334611)				$ 86.03
20	W10238347		Hose, Vacuum Break				$ 24.63
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 8.40
22	WPW10344775		Harness, Valve   (Replaces: W10337345)				$ 163.34
23	WP8281163		Screw, 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 10.19
24	WP3400818		Screw, 8-18 X .20   (Replaces: 3400818)				$ 7.96

    View Diagram in Separate Window       Print Part List
