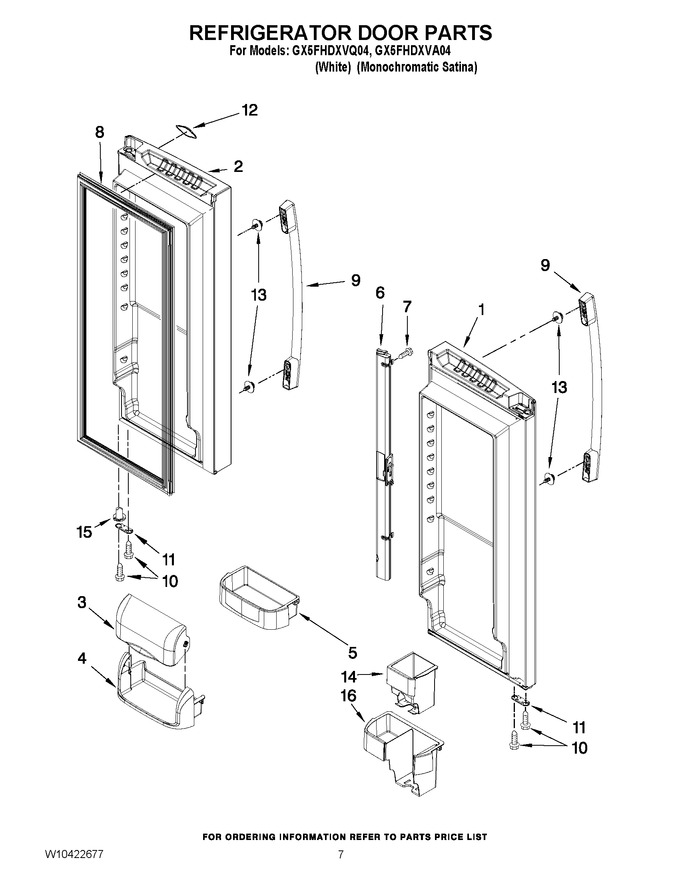

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12978035L Door, Left (satina) Appelez-nous -
1 12978033LGW Door, Left (white) Appelez-nous -
2 12978034L Door, Right (satina) Appelez-nous -
2 12978032LGW Door, Right (white) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WPW10289497 Bucket, Door (gallon (1))   (Replaces: W10289497) In-Stock Immediately $ 81.09

5 WPW10371194 Bucket, Door (medium (3))   (Replaces: W10371194) In-Stock Immediately $ 77.23

6 WP12722803W Mullion, Door (white)   (Replaces: 12722803W) In-Stock Immediately $ 261.21

6 WP12722803AP Mullion, Door (apollo Grey)   (Replaces: 12722803AP) In-Stock Immediately $ 177.93

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W10830162 Gasket, Door (apollo Grey)   (Replaces: W10179332) In-Stock Immediately $ 212.57

8 W10830189 Gasket, Door (white)   (Replaces: W10163894) Special Order $ 228.91

9 W11351147 Handle, Door (stainless)   (Replaces: W10223019) Special Order $ 198.22

9 WPW10222984K Handle, Door (white)   (Replaces: W10222984) Special Order $ 205.46

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

11 W11703060 Stop, Door (apollo Grey)   (Replaces: 12968202AP) Special Order $ 15.46

11 12968202W Stop, Door (white) Special Order $ 69.29

12 2220214 Nameplate Special Order $ 32.43

13 WP12992902 Mount, Handle   (Replaces: 12992902) Special Order $ 11.91

14 WP13005401SP Sleeve-can Disp.   (Replaces: 13005401SP) In-Stock Immediately $ 79.12

15 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 61.46

15 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 8.15

16 W10169346 Bucket-can Disp. Special Order $ 49.22
