SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts

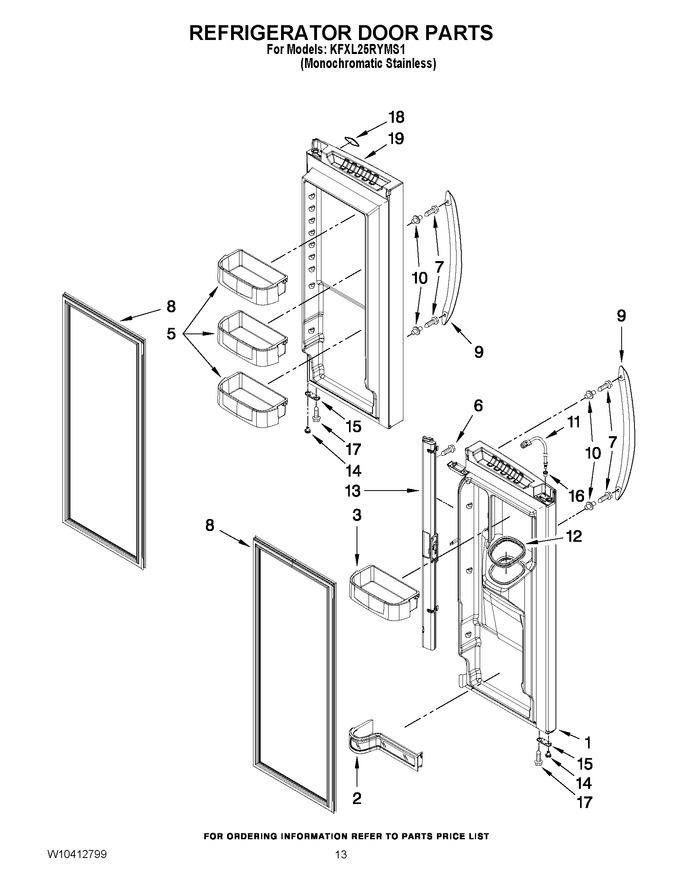

07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107307S		Door, Left (mono Stainless)		Appelez-nous	-
2	W10355269		Bucket-mini-lh				$ 78.54
3	W11379148		Bucket-lh (2)   (Replaces: W10355270)			Immediately	$ 164.59
5	W11706640		Bucket-rh (3)   (Replaces: W10355264)				$ 75.11
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
7	W10290759		Screw, Handle				$ 5.83
8	W10830274		Gasket, Door (apollo Grey)   (Replaces: W10294127)			Immediately	$ 205.74
9	WPW10314517K		Door Handle (stainless)   (Replaces: W10314517)				$ 243.37
10	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
11	W10296451		Waterline, Door				$ 53.54
12	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 32.76
13	WPW10311757		Mullion, Door (apollo Grey)   (Replaces: W10311757)				$ 141.14
14	WP12028505AP		Closure, Door   (Replaces: 12028505AP)			Immediately	$ 61.46
15	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 15.46
16	12996601		Clip, Bushing Wire (left Door)				$ 10.05
17	WP98165		Screw   (Replaces: 12990521)				$ 8.57
18	WPW10243391		Nameplate (apollo Grey)   (Replaces: W10243391)				$ 58.31
19	13107302S		Door, Right (mono Stainless)		Appelez-nous	-
