SELECT A DIAGRAM
01 - Cooktop Parts

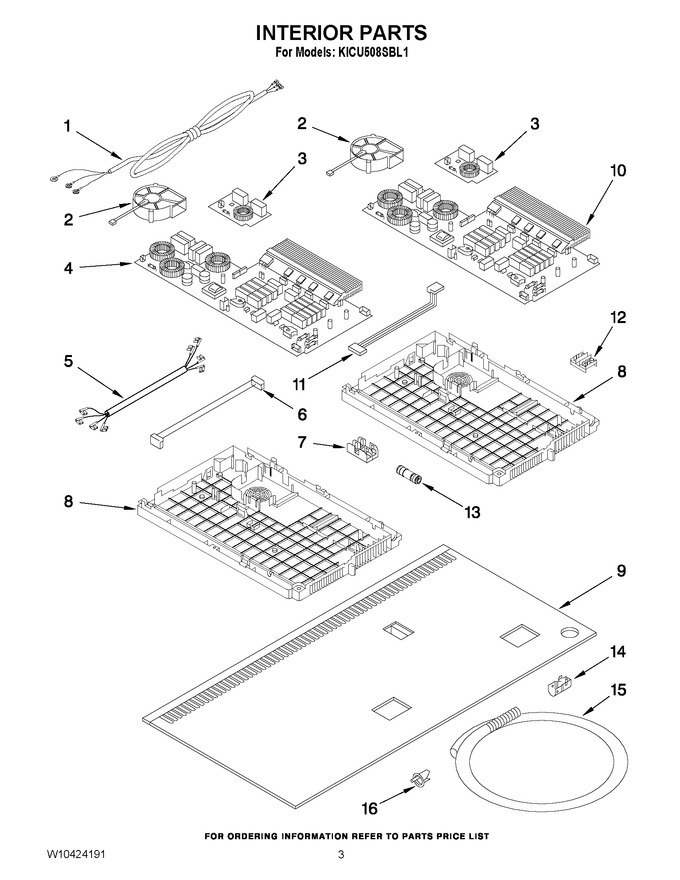

02 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192958 | Cord, Power (Replaces: W10122357) |
|
$ 137.41 | |||||
| 2 | W10122363 | Fan, Blower |
|
$ 258.00 | |||||
| 3 | W10134543 | Control, Elec |
|
$ 183.62 | |||||
| 4 | W10122364 | Control, Elec |
|
$ 790.95 | |||||
| 5 | W10122380 | Harness, Wire |
|
$ 420.92 | |||||
| 6 | W10122359 | Harness, Wire |
|
$ 81.35 | |||||
| 7 | W10122375 | Block, Fuse |
|
- | |||||
| 8 | W10122360 | Bracket, Control |
|
- | |||||
| 9 | W10122368 | Cover, Bottom |
|
- | |||||
| 10 | W10122365 | Control, Elec |
|
- | |||||
| 11 | W10122377 | Harness, Wire (t Control) |
|
$ 45.60 | |||||
| 12 | W10122379 | Block, Terminal |
|
- | |||||
| 13 | W10122374 | Fuse |
|
$ 138.22 | |||||
| 14 | W10122370 | Bracket, Mounting |
|
$ 35.90 | |||||
| 15 | W10122371 | Conduit |
|
- | |||||
| 16 | W10122372 | Bushing |
|
- |
