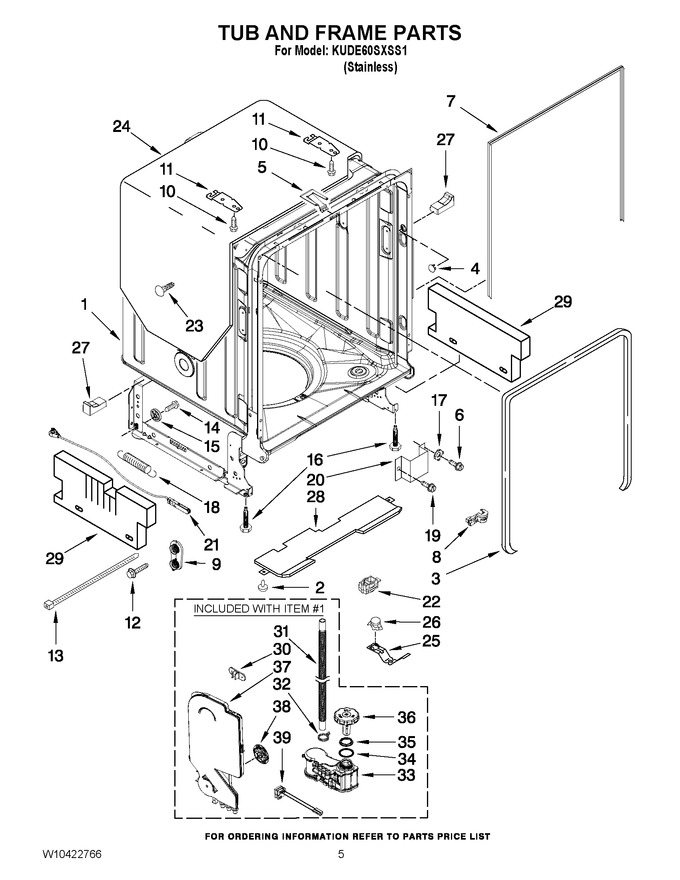

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10511196 | Tub Assembly (also Includes Heater Assembly & Items 30, 31, 32, 33, 34, 35, 36, 37, 38 & 39) (Replaces: W10195127) |
|
$ 599.12 | |||||
| 2 | WP3400924 | Retainer, Push (Replaces: 3400924) |
|
Immediately | $ 45.39 | ||||
| 3 | W11177741 | Seal, Door (Replaces: W10300924) |
|
Immediately | $ 77.43 | ||||
| 4 | W10795980 | Plug Tub (Replaces: W10082838) |
|
Immediately | $ 15.06 | ||||
| 5 | WPW10300779 | Strike, Plate (Replaces: W10300779) |
|
Immediately | $ 101.37 | ||||
| 6 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 8.24 | |||||
| 7 | W10864081 | Seal, Cabinet (Replaces: W10179427) |
|
Immediately | $ 84.31 | ||||
| 8 | W11384788 | Strain Relief (Replaces: 8573061) |
|
$ 22.59 | |||||
| 9 | WPW10084086 | Door Balance Assembly (Replaces: W10084086) |
|
Immediately | $ 33.02 | ||||
| 10 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 11 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 12 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 7.55 | |||||
| 13 | 8539404 | Wrap, Tie |
|
$ 4.52 | |||||
| 14 | WPW10348411 | Screw (Replaces: W10348411) |
|
$ 10.82 | |||||
| 15 | WP8268977 | Wheel, Leg (Replaces: 8268977) |
|
$ 15.19 | |||||
| 16 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 88.96 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 18 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 36.69 | ||||
| 19 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 20 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 21 | 8194001 | Cable, Door Assembly (Replaces: W10158291) |
|
Immediately | $ 43.06 | ||||
| 22 | W10292870 | Protector |
|
$ 24.62 | |||||
| 23 | WP304666 | Retainer, Push (Replaces: 304666) |
|
$ 29.45 | |||||
| 24 | W10877094 | Shield, Sound Tub (Replaces: 8573239) |
|
$ 233.63 | |||||
| 25 | W10195090 | Bracket, Thermostat |
|
- | |||||
| 26 | WPW10195091 | Thermostat (Replaces: W10195091) |
|
Immediately | $ 36.97 | ||||
| 27 | W10195631 | Spacer, Tub/brace (right) |
|
$ 17.19 | |||||
| 27 | W10195630 | Spacer, Tub/brace (left) |
|
$ 17.31 | |||||
| 28 | WPW10746770 | Insulation Bottom (Replaces: W10195368) |
|
$ 44.84 | |||||
| 29 | W10275523 | Shield, Side |
|
- | |||||
| 30 | W10330864 | Hanger, Drain Hose |
|
- | |||||
| 31 | W10346255 | Hose-outlet (Replaces: W10322020) |
|
$ 121.24 | |||||
| 32 | WP596669 | Clamp, Hose (Replaces: 9724997) |
|
Immediately | $ 8.82 | ||||
| 33 | W10195288 | Tank, Softener |
|
- | |||||
| 34 | W10195056 | Gasket |
|
$ 5.27 | |||||
| 35 | W10195058 | Nut, Tank |
|
- | |||||
| 36 | W10327489 | Cap, Tank |
|
$ 9.54 | |||||
| 37 | WPW10458714 | Tank, Regen Dosage (Replaces: W10362873) |
|
$ 102.60 | |||||
| 38 | W11387338 | Nut, Inlet (Replaces: W10195786) |
|
$ 14.86 | |||||
| 39 | W10367058 | Harness-jumper Flow Meter |
|
- |
