SELECT A DIAGRAM

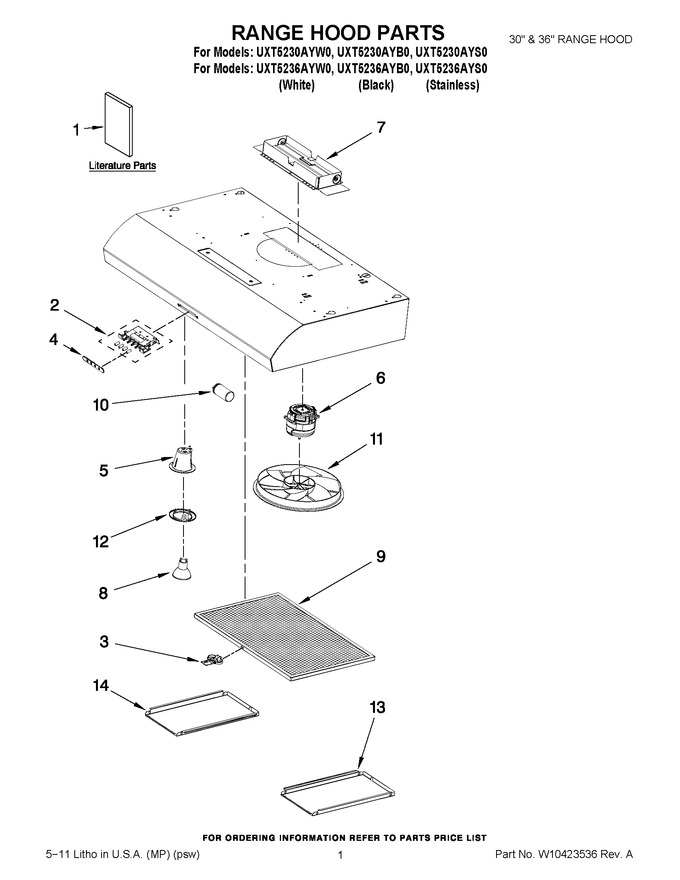

01 - Range Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10400323		Guide, Use & Care		Appelez-nous	-
2	WPW10419516		Control, Buttons   (Replaces: W10419516)				$ 299.44
3	W10416841		Latch, Filter				$ 13.29
4	W10416838		Cover, Buttons				$ 30.83
5	WPW10370558		Socket, Bulb   (Replaces: W10370558)				$ 87.43
6	W10416839		Motor				$ 486.72
7	WPW10291572		Damper 3 1/4`` X 10`` (8.3 X 25.4 Cm)   (Replaces: W10291572)				$ 195.58
8	WPW10291579		Lamp   (Replaces: W10291579)			Immediately	$ 206.90
9	W11177751		Grease Filter   (Replaces: W10419114)			Immediately	$ 53.03
10	W10416842		Capacitor				$ 94.37
11	W10416840		Fan				$ 100.17
12	W10351924		Bezel, Lamp				$ 197.59
13	W10419527		Side Panel, Right (black-36``)		Appelez-nous	-
13	W10419517		Side Panel, Right (black-30``)		Appelez-nous	-
13	W10419522		Side Panel, Right (white-30``)				$ 171.28
13	W10416843		Side Panel, Right (stainless-30``)				$ 156.40
13	W10419530		Side Panel, Right (white-36``)		Appelez-nous	-
13	W10419535		Side Panel, Right (stainless-36``)				$ 123.93
14	W10419523		Side Panel, Left (white-30``)				$ 171.28
14	W10416844		Side Panel, Left (stainless-30``)				$ 161.88
14	W10419521		Side Panel, Left (black-30``)		Appelez-nous	-
14	W10419532		Side Panel, Left (stainless-36``)				$ 168.83
14	W10419528		Side Panel, Left (white-36``)		Appelez-nous	-
14	W10419526		Side Panel, Left (black-36``)		Appelez-nous	-
NI	W10388168		Mounting Plate Round Vent 7`` (17.8 Cm)				$ 42.13
NI	31462A		Cleaner/polish (for Stainless Model Only)		Appelez-nous	-
NI	W10355451		Round Damper 7`` (17.8 Cm)				$ 47.22
NI	W10386873		Charcoal Filter Kit			Immediately	$ 42.37
NI	WPW10291572		Damper 3 1/4`` X 10`` (8.3 X 25.4 Cm)   (Replaces: W10291572)				$ 195.58
NI	W10613691		Power Cord Kit   (Replaces: W10355452)				$ 58.80

    View Diagram in Separate Window       Print Part List
