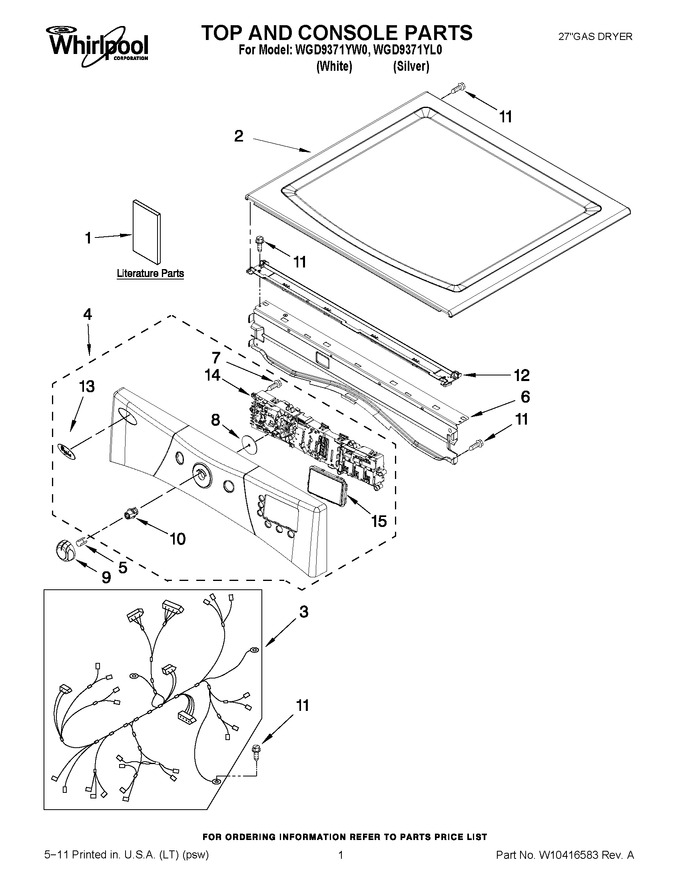

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10385092		Use & Care Guide		Appelez-nous	-
1	W10386307		Tech Sheet		Appelez-nous	-
1	W10385100		Installation Instructions		Appelez-nous	-
2	WPW10336080		Top (white)   (Replaces: W10336080)				$ 331.99
2	WPW10336091		Top (silver)   (Replaces: W10336091)				$ 324.93
3	W10278758		Harness, Main		Appelez-nous	-
4	W10755981		Panel, Console (silver)   (Replaces: W10385621)				$ 643.63
4	W10385620		Panel, Console (white)		Appelez-nous	-
5	WP8536939		Spring, Knob   (Replaces: 8536939)			Immediately	$ 8.20
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	W10006580		Screw		Appelez-nous	-
8	8572039		Seal, User Interface		Appelez-nous	-
9	WPW10251394		Knob Assembly (include No. 5 )   (Replaces: W10251394)				$ 55.94
10	W10381093		Bushing, Shaft Knob		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10266747		Channel, Water   (Replaces: W10266747)				$ 73.96
13	W10117943		Badge Assembly		Appelez-nous	-
14	WPW10387234		Assembly, User Interface   (Replaces: W10387234)				$ 313.89
15	W10368266		Window, Display		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
