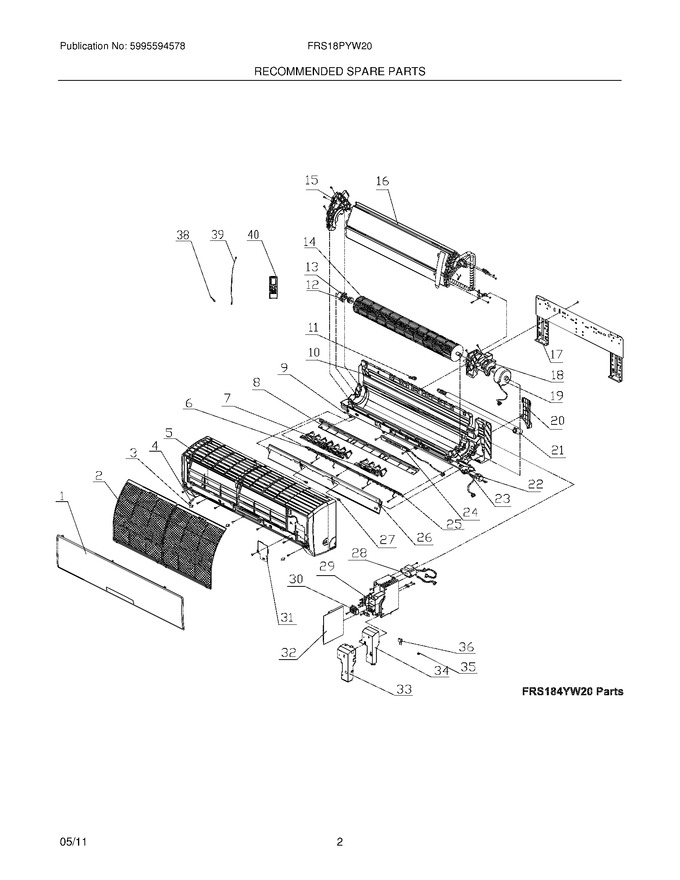

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304483576 | Panel,front |
|
- | |||||
| 3 | 5304482789 | Cover,screws ,front Assembly |
|
- | |||||
| 4 | 5304483578 | Baffle |
|
- | |||||
| 5 | 5304483579 | Front Assembly,casing |
|
- | |||||
| 9 | 5304482905 | Bushing,louver Shaft ,left |
|
- | |||||
| 10 | 5304483583 | Cabinet,rear |
|
- | |||||
| 11 | 5304482805 | Drain Plug,drip Tray |
|
- | |||||
| 15 | 5304483585 | Support,evaporator |
|
- | |||||
| 17 | 5304483587 | Bracket,mounting Plate ,wall |
|
- | |||||
| 18 | 5304483588 | Housing,motor Cover |
|
- | |||||
| 20 | 5304482791 | Clamp,drain Hose |
|
- | |||||
| 23 | 5304482907 | Lever,louver Control ,crank |
|
- | |||||
| 25 | 5304483593 | Grille,rear |
|
- | |||||
| 27 | 5304482906 | Bushing,louver Shaft ,right |
|
- | |||||
| 29 | 5304483596 | Control Box |
|
- | |||||
| 31 | 5304483597 | Cover,control Box |
|
- | |||||
| 33 | 5304483599 | Shield,interference ,electrical |
|
- | |||||
| 34 | 5304483600 | Cover,control Box ,outside |
|
- | |||||
| F12 | 5304482777 | Bearing Block,housing ,w/o`ring |
|
$ 10.61 | |||||
| F13 | 5304482778 | O`ring,bearing ,gasket/seal |
|
$ 25.41 | |||||
| F14 | 5304483584 | Blower Wheel,cross Flow Fan |
|
$ 112.19 | |||||
| F16 | 5304483586 | Evaporator |
|
- | |||||
| F19 | 5304483589 | Motor,blower Fan |
|
- | |||||
| F2 | 5304483577 | Filter,air |
|
- | |||||
| F21 | 5304483590 | Hose,drain |
|
- | |||||
| F22 | 5304483591 | Motor,louver ,horizontal |
|
- | |||||
| F24 | 5304483592 | Pc Board,display/input |
|
- | |||||
| F26 | 5304483594 | Louver,horizontal |
|
- | |||||
| F28 | 5304483595 | Transformer |
|
- | |||||
| F30 | 5304482804 | Terminal Block,4-bit |
|
- | |||||
| F32 | 5304483713 | Pc Board,main ,control/power |
|
- | |||||
| F35 | 5304483384 | Connector,electrical ,jumper |
|
- | |||||
| F36 | 5304483601 | Capacitor,blower Motor |
|
- | |||||
| F38 | 5304459792 | Sensor,ambient Temp ,thermistor |
|
$ 64.16 | |||||
| F39 | 5304483603 | Sensor,evaporator Temp ,defrost |
|
$ 22.40 | |||||
| F40 | 5304482787 | Remote Control,transmitter |
|
$ 127.00 | |||||
| F6 | 5304483580 | Louver,vertical ,right |
|
- | |||||
| F7 | 5304483581 | Louver,vertical ,left |
|
- | |||||
| F8 | 5304483582 | Diffuser,air Vent ,main Louver |
|
- | |||||
| NI | 5304483381 | Holder,remote Control |
|
$ 7.74 |
