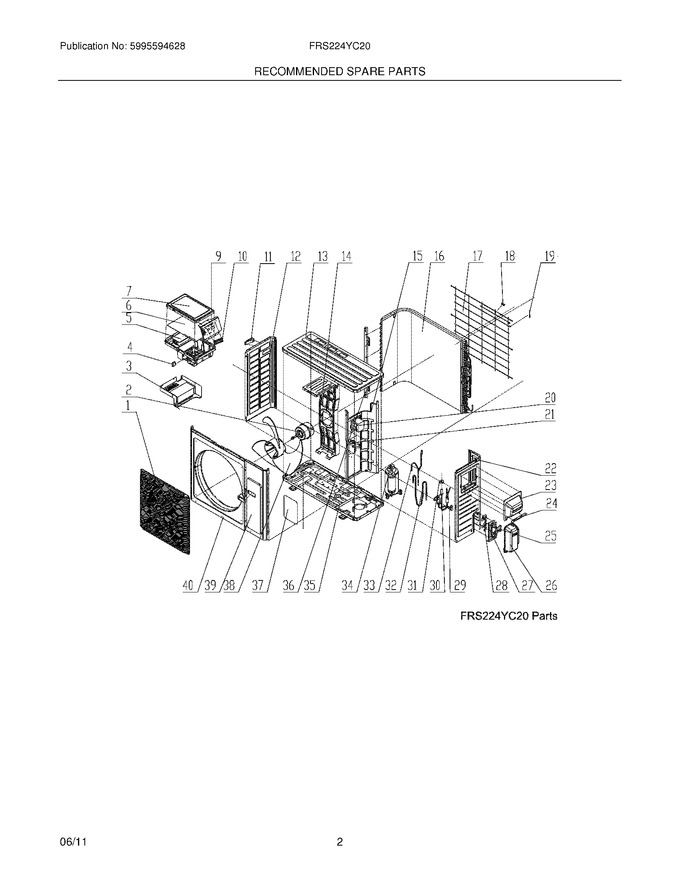

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304483744 | Grille,front |
|
- | |||||
| 3 | 5304483746 | Control Box,flame Resistant |
|
- | |||||
| 7 | 5304483748 | Cover,control Box |
|
- | |||||
| 9 | 5304483750 | Bracket,terminal Board |
|
- | |||||
| 11 | 5304483675 | Handle,left |
|
- | |||||
| 12 | 5304483751 | Panel,left Side |
|
- | |||||
| 13 | 5304483752 | Cover,unit ,top |
|
- | |||||
| 14 | 5304483753 | Bracket,motor Support |
|
- | |||||
| 15 | 5304483754 | Bulkhead,partition |
|
- | |||||
| 17 | 5304483756 | Grille,rear |
|
- | |||||
| 18 | 5304483683 | Clamp,wire |
|
- | |||||
| 22 | 5304483762 | Panel,right Side |
|
- | |||||
| 23 | 5304483688 | Handle,right ,wiring Cover |
|
- | |||||
| 24 | 5304483763 | Baffle |
|
- | |||||
| 26 | 5304483765 | Cover,valve |
|
- | |||||
| 27 | 5304483766 | Bracket,valve |
|
- | |||||
| 28 | 5304483767 | Baffle,valve Bracket |
|
- | |||||
| 35 | 5304483772 | Base,unit Chassis |
|
- | |||||
| 36 | 5304483773 | Bracket,support ,condenser |
|
- | |||||
| 37 | 5304483700 | Plate,insulator ,control Box |
|
- | |||||
| 39 | 5304483775 | Plate,front |
|
- | |||||
| 40 | 5304483776 | Panel,front |
|
- | |||||
| F10 | 5304482856 | Terminal Block,pcb Wiring |
|
- | |||||
| F16 | 5304483755 | Condenser |
|
- | |||||
| F19 | 5304483684 | Sensor Kit |
|
$ 99.94 | |||||
| F2 | 5304483745 | Motor,fan |
|
$ 422.35 | |||||
| F20 | 5304483703 | Filter,interference ,electronic |
|
- | |||||
| F21 | 5304483757 | Capacitor,compressor |
|
- | |||||
| F25 | 5304483764 | Valve,cut-off ,5/8 |
|
- | |||||
| F29 | 5304483768 | Valve,cut-off ,1/4 |
|
- | |||||
| F30 | 5304483769 | Valve,expansion ,capillary Tube |
|
- | |||||
| F31 | 5304483687 | Coil,expansion Valve |
|
$ 135.71 | |||||
| F32 | 5304483770 | Tube,suction |
|
- | |||||
| F33 | 5304483771 | Tube,discharge |
|
- | |||||
| F34 | 5304483697 | Compressor,with Overload |
|
- | |||||
| F38 | 5304483774 | Fan Blade,propeller ,axial Flow |
|
- | |||||
| F4 | 5304459941 | Capacitor,motor |
|
- | |||||
| F5 | 5304483671 | Heat Exchanger,sink |
|
- | |||||
| F6 | 5304483747 | Pc Board,main ,control/power |
|
- |
