01 - Cover

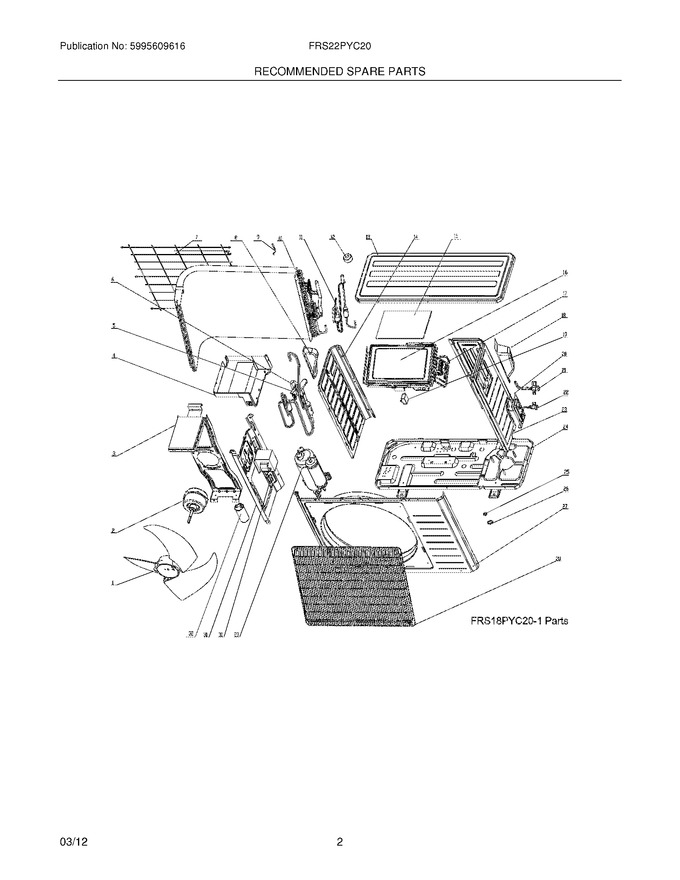

03 - Recommended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304483753		Bracket,motor Support		Appelez-nous	-
4	5304483746		Control Box,flame Resistant		Appelez-nous	-
7	5304483756		Grille,rear		Appelez-nous	-
8	5304483675		Handle,left		Appelez-nous	-
13	5304483752		Cover,unit ,top		Appelez-nous	-
14	5304483751		Panel,left Side		Appelez-nous	-
15	5304483700		Plate,insulator ,control Box		Appelez-nous	-
18	5304483688		Handle,right ,wiring Cover		Appelez-nous	-
20	5304483766		Bracket,valve		Appelez-nous	-
23	5304483762		Panel,right Side		Appelez-nous	-
24	5304483772		Base,unit Chassis		Appelez-nous	-
25	5304482867		Connector,drain		Appelez-nous	-
26	5304483721		Plug,drain ,chassis/base		Appelez-nous	-
27	5304483776		Panel,front		Appelez-nous	-
28	5304483744		Grille,front		Appelez-nous	-
31	5304483754		Bulkhead,partition		Appelez-nous	-
F1	5304483774		Fan Blade,propeller ,axial Flow		Appelez-nous	-
F10	5304483780		Condenser		Appelez-nous	-
F11	5304483781		Valve,expansion ,capillary Tube		Appelez-nous	-
F12	5304483687		Coil,expansion Valve				$ 135.71
F16	5304483782		Pc Board Assembly,main/power				$ 649.78
F17	5304482856		Terminal Block,pcb Wiring		Appelez-nous	-
F19	5304459941		Capacitor,motor		Appelez-nous	-
F2	5304483745		Motor,fan				$ 422.35
F21	5304483783		Valve,cut-off ,5/8		Appelez-nous	-
F22	5304483768		Valve,cut-off ,1/4		Appelez-nous	-
F29	5304483697		Compressor,with Overload		Appelez-nous	-
F30	5304483703		Filter,interference ,electronic		Appelez-nous	-
F32	5304483757		Capacitor,compressor		Appelez-nous	-
F5	5304483715		Coil,4-way Valve				$ 64.50
F6	5304483779		Valve,4-way ,reversing		Appelez-nous	-
F9	5304483684		Sensor Kit				$ 99.94

    View Diagram in Separate Window       Print Part List
