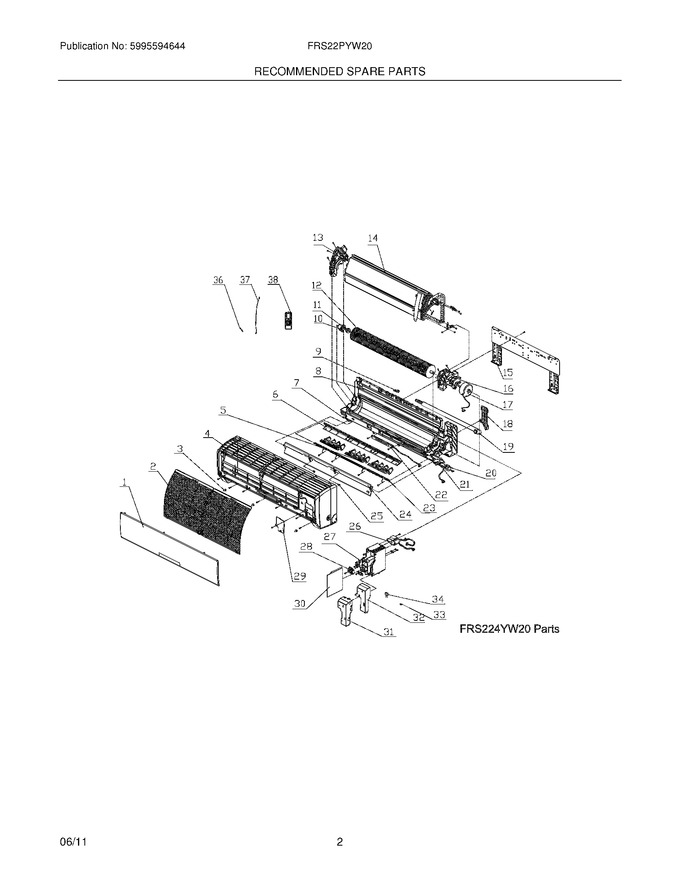

03 - Recommended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483722		Panel,front		Appelez-nous	-
3	5304482789		Cover,screws ,front Assembly		Appelez-nous	-
4	5304483724		Front Assembly,casing		Appelez-nous	-
7	5304482905		Bushing,louver Shaft ,left		Appelez-nous	-
8	5304483727		Cabinet,rear		Appelez-nous	-
9	5304482805		Drain Plug,drip Tray		Appelez-nous	-
13	5304483730		Support,evaporator		Appelez-nous	-
15	5304483732		Bracket,mounting Plate ,wall		Appelez-nous	-
16	5304483733		Housing,motor Cover		Appelez-nous	-
18	5304483735		Clamp,drain Hose		Appelez-nous	-
21	5304482907		Lever,louver Control ,crank		Appelez-nous	-
23	5304483738		Grille,rear		Appelez-nous	-
25	5304482906		Bushing,louver Shaft ,right		Appelez-nous	-
27	5304483596		Control Box		Appelez-nous	-
29	5304483597		Cover,control Box		Appelez-nous	-
31	5304483599		Shield,interference ,electrical		Appelez-nous	-
32	5304483600		Cover,control Box ,outside		Appelez-nous	-
F10	5304483728		Bearing Block,housing ,w/o`ring				$ 2.86
F11	5304482778		O`ring,bearing ,gasket/seal				$ 25.41
F12	5304483729		Blower Wheel,cross Flow Fan		Appelez-nous	-
F14	5304483731		Evaporator		Appelez-nous	-
F17	5304483734		Motor,fan		Appelez-nous	-
F19	5304482780		Hose,drain		Appelez-nous	-
F2	5304483723		Filter,air		Appelez-nous	-
F20	5304483736		Motor,louver ,horizontal		Appelez-nous	-
F22	5304483737		Pc Board,display/input				$ 103.49
F24	5304483739		Louver,horizontal		Appelez-nous	-
F26	5304483595		Transformer		Appelez-nous	-
F28	5304482804		Terminal Block,4-bit		Appelez-nous	-
F30	5304483777		Pc Board,main ,control/power		Appelez-nous	-
F33	5304483741		Connector,electrical ,jumper		Appelez-nous	-
F34	5304483742		Capacitor,blower Motor		Appelez-nous	-
F36	5304459792		Sensor,ambient Temp ,thermistor				$ 64.16
F37	5304483603		Sensor,evaporator Temp ,defrost				$ 22.40
F38	5304482787		Remote Control,transmitter				$ 127.00
F5	5304483725		Louver,vertical		Appelez-nous	-
F6	5304483726		Diffuser,air Vent ,main Louver		Appelez-nous	-
NI	5304483381		Holder,remote Control				$ 7.74
