SELECT A DIAGRAM

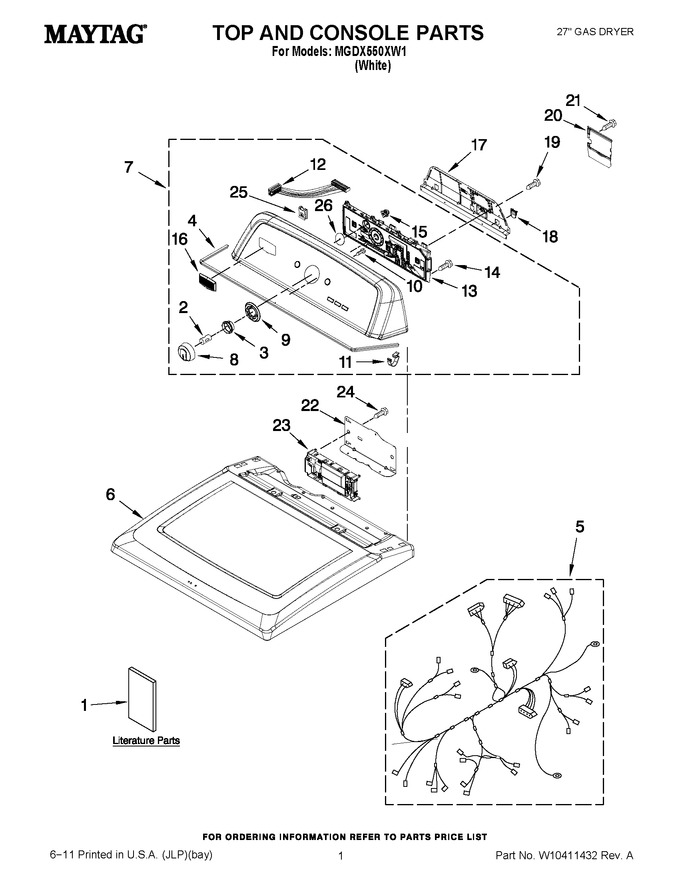

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096984		Guide, Install		Appelez-nous	-
1	W10259284		Wiring Diagram		Appelez-nous	-
1	W10097013		Guide, Use & Care		Appelez-nous	-
2	WP8536939		Spring-clip Knob   (Replaces: 8536939)			Immediately	$ 8.20
3	W10326923		Spacer, Knob		Appelez-nous	-
4	W10280079		Seal, Console		Appelez-nous	-
5	W10253982		Main Harness		Appelez-nous	-
6	WPW10268730		Top   (Replaces: W10268730)				$ 345.86
7	W10293246		Console Assembly (complete)		Appelez-nous	-
8	WPW10251381		Knob Assembly   (Replaces: W10251381)				$ 58.63
9	W10305134		Bezel, Cycle Trim				$ 26.37
10	3196172		Screw, 6-19 X 3/8			Immediately	$ 13.47
11	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
12	W10285495		Cable-ui		Appelez-nous	-
13	WPW10272635		User Interface Assembly   (Replaces: W10272635)				$ 313.89
14	W10853898		Screw, 8-16 X 3/4   (Replaces: W10219342)			Immediately	$ 8.18
15	W10274524		Fascia, Tensioner		Appelez-nous	-
16	W10492808		Maytag Badge   (Replaces: W10323735)				$ 59.82
17	W10096969		Panel, Rear				$ 197.80
18	W10279552		Plug-upper (rear Panel)		Appelez-nous	-
19	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
20	W10338363		Cover, Terminal Block		Appelez-nous	-
21	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
22	W10271580		Bracket, Motor Control		Appelez-nous	-
23	WPW10317638		Ccu-control   (Replaces: W10317638)				$ 344.65
24	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
25	W11213336		Nut, U-type   (Replaces: W10298336)				$ 8.13
26	W10323092		Seal, Ui		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
