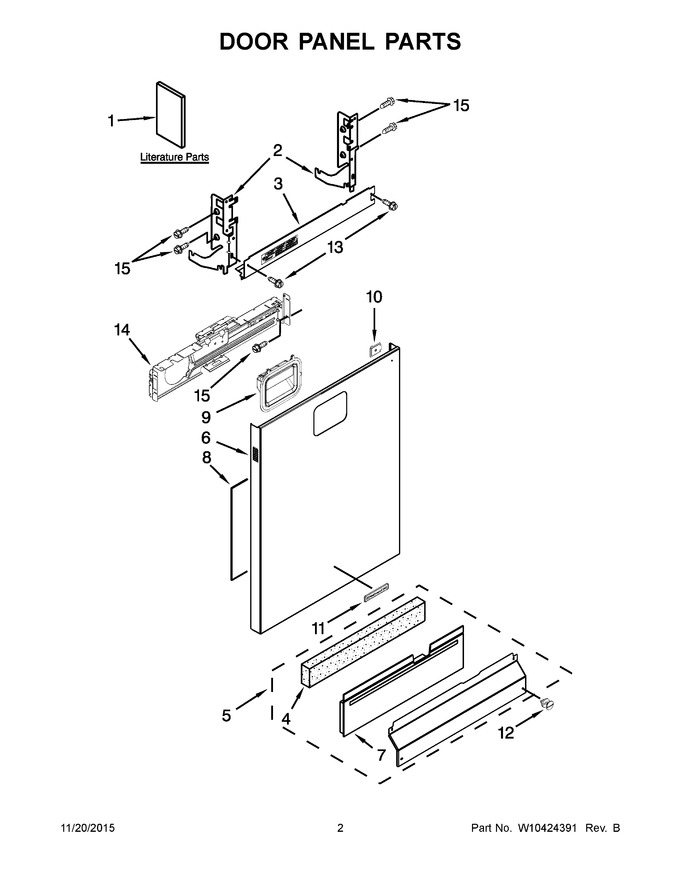

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Third Level Rack And Track Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10321585		Instructions, Installation		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321447)			Immediately	$ 32.88
4	W10831329		Insulation, Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
5	WPW10526114		Access Panel (black)   (Replaces: W10368715)			Immediately	$ 181.97
6	WPW10195724		Panel, Full Front (includes Items 9, 10 & 11) (stainless)   (Replaces: W10195724)				$ 468.71
7	W10831329		Insulation, Access Panel   (Replaces: W10195629)			Immediately	$ 43.30
8	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
9	W10195552		Handle Assembly (chrome)				$ 153.14
10	W10319007		Light, Pipe				$ 72.00
11	WPW10243391		Grey   (Replaces: W10243391)				$ 58.31
12	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	W11116870		Bracket, Control Panel   (Replaces: W10194911)				$ 89.95
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
1A	W10300938		Energy Guide		Appelez-nous	-
1B	W10300929		Use & Care Guide, English/french		Appelez-nous	-
1C	W10300597		Use & Care Guide, Spanish		Appelez-nous	-
1D	W10195613		Tech Sheet, English		Appelez-nous	-
1E	W10195614		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
