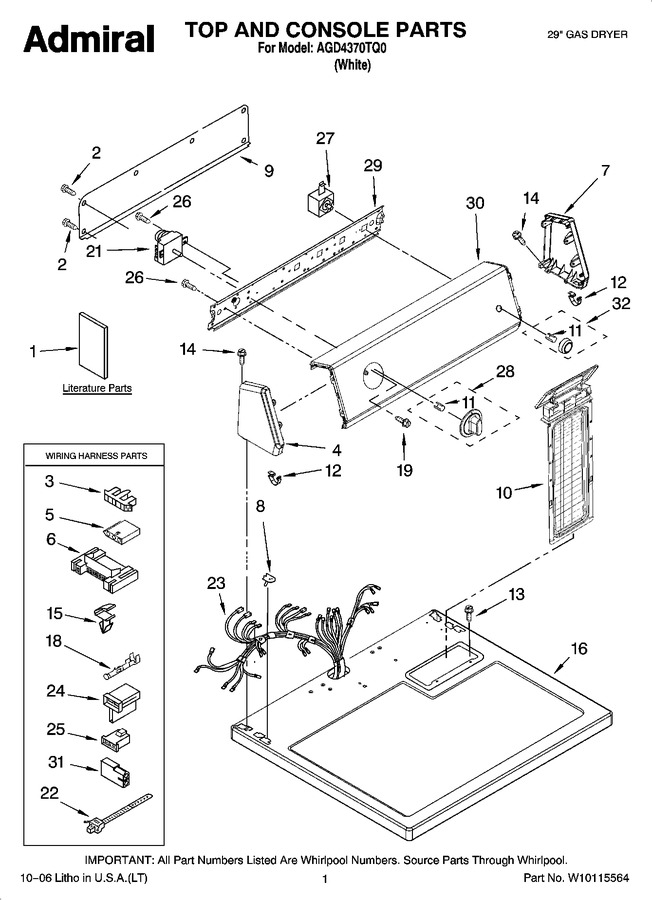

01 - Top And Console Parts
02 - Cabinet Parts
03 - 8318272 Burner Assembly
04 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8528187 | Wiring Diagram |
|
- | |||||
| 1 | W10089174 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10088774 | Guide, Use & Care |
|
- | |||||
| 1 | W10088971 | Instructions, Installation |
|
- | |||||
| 2 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 3 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 4 | 8579674 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3936144 | Connector |
|
$ 20.21 | |||||
| 6 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 7 | 8579673 | Cap, End (r.h.) |
|
- | |||||
| 8 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 9 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 10 | W10874409 | Screen, Lint (Replaces: 8558467) |
|
Immediately | $ 67.01 | ||||
| 11 | WP8536939 | Spring Clip Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 15 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 332.62 | ||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 19 | 3400859 | Screw, 8-18 X 7/32 (Replaces: 8533951) |
|
$ 13.22 | |||||
| 21 | WP8299764 | Timer (Replaces: 8299764) |
|
$ 354.66 | |||||
| 22 | 3391249 | Tie, Cable |
|
- | |||||
| 23 | 8299877 | Harness, Wiring |
|
- | |||||
| 24 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 5.73 | |||||
| 25 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 6.95 | |||||
| 26 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 27 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 28 | W10110064 | Timer Knob & Dial |
|
$ 26.97 | |||||
| 29 | 8579678 | Bracket, Control |
|
- | |||||
| 30 | W10086723 | Panel, Control |
|
- | |||||
| 31 | 717252 | Receptacle |
|
- | |||||
| 32 | W10110065 | Knob, Push-to-start |
|
$ 87.57 |
