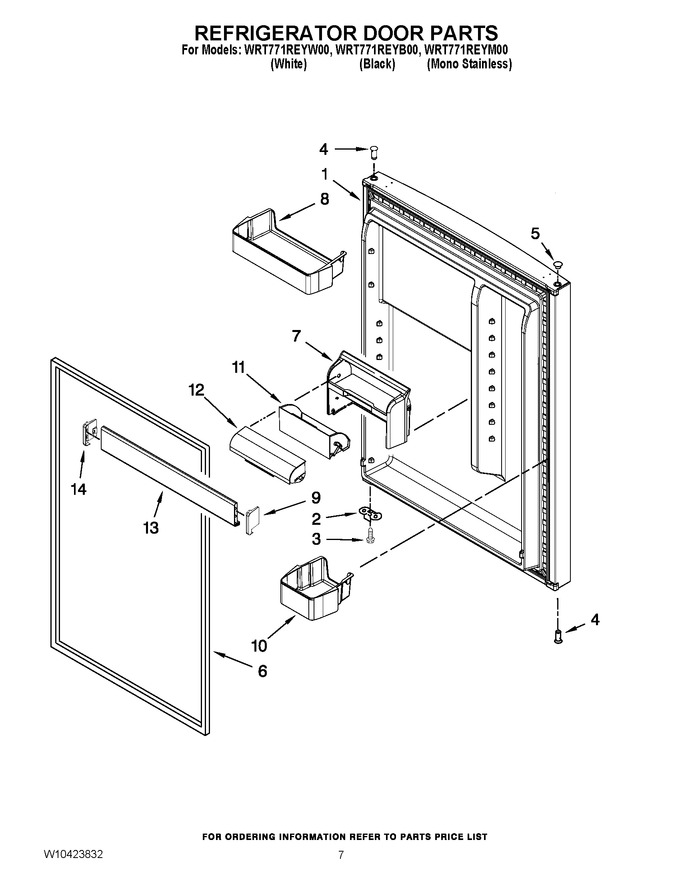

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10346807 | Refrigerator Door (includes Items 4, 5 & 6) (white) |
|
- | |||||
| 1 | W10354705 | Refrigerator Door (includes Items 4, 5 & 6) (mono Stainless) |
|
- | |||||
| 1 | W10354700 | Refrigerator Door (includes Items 4, 5 & 6) (black) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 5 | WP2254517 | Hole Plug, Hinge (apollo Grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 5 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 6 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 330.95 | |||||
| 6 | W10249195 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10171475) |
|
$ 335.80 | |||||
| 7 | W10308809 | Utility Compart |
|
$ 35.60 | |||||
| 8 | WPW10308868 | Bin, Long (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 9 | W10308871 | Trim, End Cap (rs) |
|
$ 10.44 | |||||
| 10 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 72.18 | ||||
| 11 | W10356445 | Bin, Tilt Out |
|
$ 40.93 | |||||
| 12 | WPW10308843 | Utility Flip Lid (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | WPW10469911 | Trim, Door Shelf (Replaces: W10308874) |
|
$ 104.53 | |||||
| 14 | W10338485 | Trim, End Cap (ls) |
|
$ 10.41 |
