SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Doors


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts


8 - Machine Compartment


9 - Clad Components

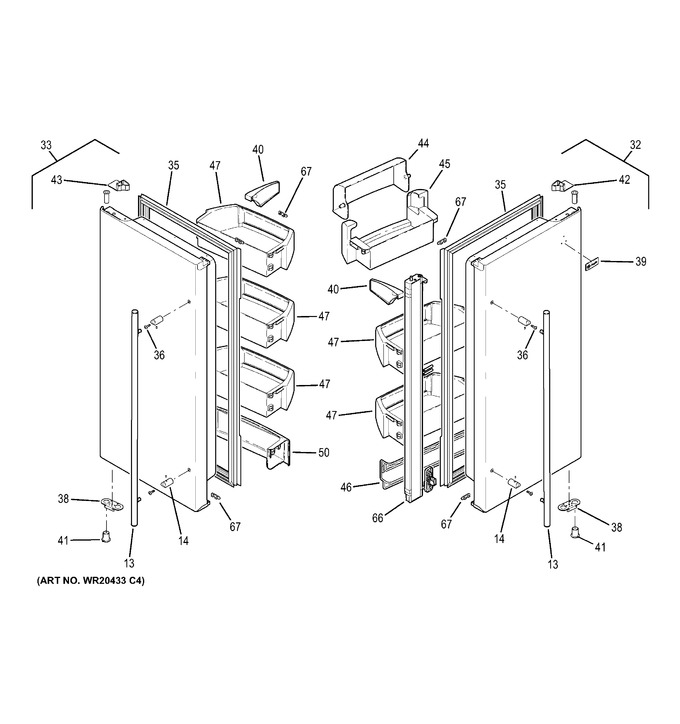

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	WR01L02372		Handle Door Ss   (Replaces: WR12X10951)				$ 148.00
14	WR02X10056		Support Handle Ss		Appelez-nous	-
32	WR78X12709		Door Foam Asm Flat Rh		Appelez-nous	-
33	WR78X12352		Door Foam Asm Flat Lh		Appelez-nous	-
35	WR01L02133		Gasket French With Flap   (Replaces: WR14X10237)			Immediately	$ 111.81
36	WR01X10627		Screw Mxp10f750z		Appelez-nous	-
38	WR02X12407		Stop Door Bm		Appelez-nous	-
39	WG04A00016		Badge Monogram Small   (Replaces: WB02X10833)				$ 91.76
40	WR01L04421		Snugger Module   (Replaces: WR02X10582)			Immediately	$ 31.76
41	WR01A00988		Thimble Door Ff   (Replaces: WR02X12363)				$ 15.54
42	WR02X12359		Cam Ff Closure Rh		Appelez-nous	-
43	WR01L00494		Cam Ff Closure Lh   (Replaces: WR02X12360)				$ 20.65
44	WR01L01271		Door Dairy Clear   (Replaces: WR02X12364)				$ 71.23
45	WR01L00665		Compartment Dairy   (Replaces: WR71X10871)				$ 25.11
46	WR17X12271		Beverage Rack		Appelez-nous	-
47	WR71X10875		Module Shelf Asm Ff		Appelez-nous	-
50	WR01L02892		Module Shelf Ff Fixed   (Replaces: WR17X12830)				$ 63.60
66	WR17X12753		Articulation Mullion Asm		Appelez-nous	-
67	WR02X12469		Bumper French Door		Appelez-nous	-
	WR01L00601		Center Hinge Asm Adj Lh				$ 92.84
	WR01L02794		Sistema De Baja Presion				$ 176.78
	WG03F09086		Switch Light Ff   (Replaces: WR01F02293)			Immediately	$ 11.12
	WR01F01730		Capteur			Immediately	$ 16.29
	WR01F00291		Circuit Imprimﾃ#			Immediately	$ 435.93
	WR01F00017		Tour D''air Asm			Immediately	$ 193.86
	WR01A00582		Spring Closure			Immediately	$ 4.17
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 123.62
	WG03F00154		Compressor Repl Kit (charged)				$ 1,117.00
	WR01L01455		Door Foam Asm Flat Lh, Monogra				$ 477.24
	WR01L01484		Door Foam Asm Flat Rh				$ 212.77
	WR01L02372		Handle Door Ss, Monogram				$ 148.00
	WR01L02476		Hinge Closure Asm				$ 83.64
	WR01L02559		Icemaker Asm   (Replaces: WR01L02566)			Immediately	$ 136.45

    View Diagram in Separate Window       Print Part List
