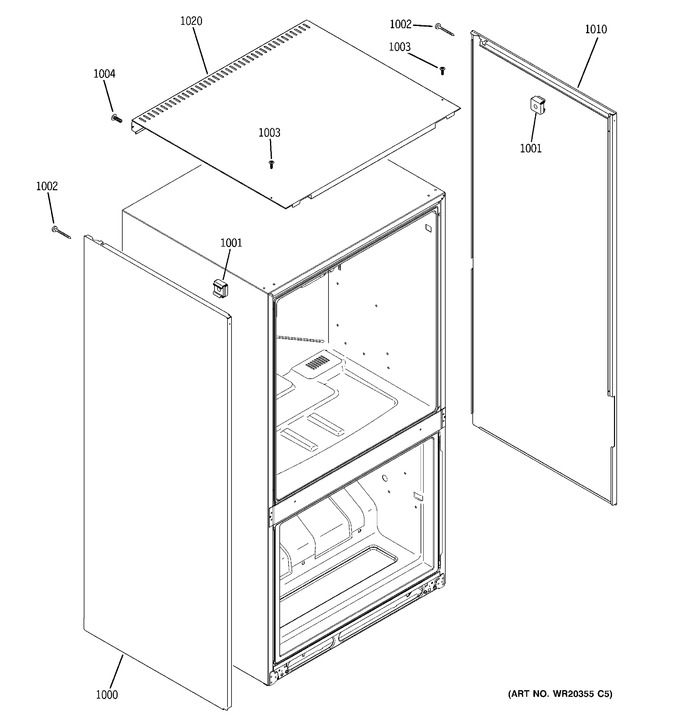

9 - Clad Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1000	WR79X10052		Clad Left Side		Appelez-nous	-
1001	WR01X10935		Cage Nut		Appelez-nous	-
1002	WR01X10933		Screw 10n100txp0z		Appelez-nous	-
1003	WR01X10934		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
1004	WR01X10065		Scr 8-18 Ba Por 5/8 Ss		Appelez-nous	-
1010	WR79X10051		Clad Right Side		Appelez-nous	-
1020	WR79X10050		Panel Top		Appelez-nous	-
	WR01A01822		Kit Soporte Correderas 21 Bf				$ 123.50
	WG04A00766		Inverter W/jumpers Kit			Immediately	$ 554.11
	WR01L02559		Icemaker Asm   (Replaces: WR01L02566)			Immediately	$ 136.45
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 123.62
	WG03A03157		Drier Filter Asm   (Replaces: WG03F00245)			Immediately	$ 153.40
	WG03F00154		Compressor Repl Kit (charged)				$ 1,117.00
	WG03L10111		Cap Filter Bypass   (Replaces: WG03F00087)			Immediately	$ 19.97
	WG04A00016		Plaquenome Monogram				$ 91.76
	WR01L02283		Grille Base Cover				$ 66.50
	WR01L01482		Porte Droite, Monogram				$ 503.34
	WR01L01455		Porte Gauche Asm, Monogram				$ 477.24
	WR01F00796		Filter Asm And Tube, Monogram			Immediately	$ 189.15
	WG03F00911		Power Cord Asm   (Replaces: WR01F00609)				$ 85.41
	WR01F00291		Board Main Combined Hmi			Immediately	$ 435.93
	WR01A00830		Slide Upper Asm Lh 21 22				$ 115.52
	WR01A00767		Slide & Bracket Asm				$ 29.09
