SELECT A DIAGRAM

10 - Door Lock


11 - Large Convection Fan


1 - Gas & Burner Parts


2 - Small Convection Fan


3 - Grill & Griddle Assembly


4 - Control Panel


5 - Cooktop


6 - Body Parts


7 - Oven Cavity Parts


8 - Large Door Assembly


9 - Small Door Assembly

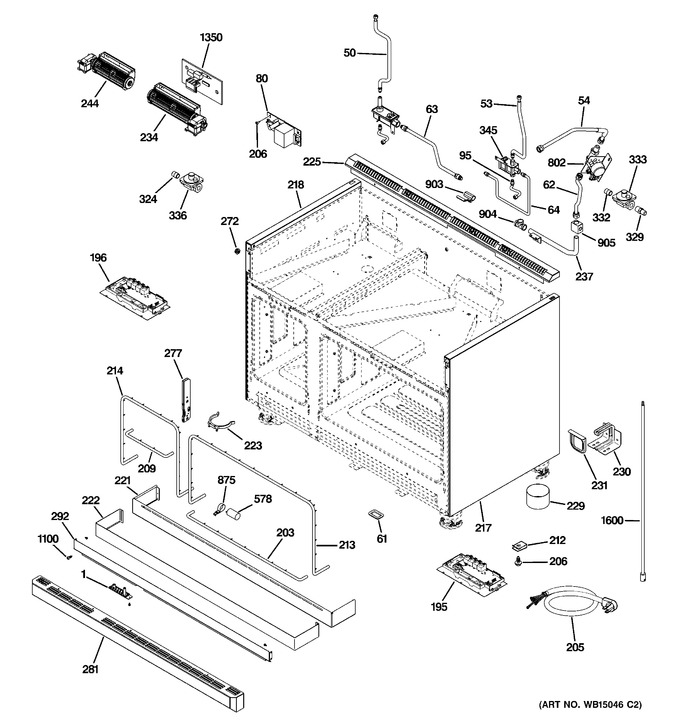

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WG02A00297		Lubricant Cleaner   (Replaces: WB02T10303)				$ 77.35
1	WB28K10639		Carrier Orifice Asm		Appelez-nous	-
1	31-10694		Pm Install Anti-tip Brkt		Appelez-nous	-
1	31-10695		Pm Attention Installer		Appelez-nous	-
1	31-10698-1		Instruction Sheet		Appelez-nous	-
1	31-10755		Pm Install Instructions		Appelez-nous	-
1	31-10766		Pm Conversion Instr		Appelez-nous	-
1	31-14931		Pm Mini Manual 48		Appelez-nous	-
1	49-85180		Pm Owners Manual		Appelez-nous	-
1	WG02A00015		Cleaner-ss   (Replaces: WB02T10111)				$ 23.22
50	WB28K10496		Tube And Nut Asm		Appelez-nous	-
53	WB28K10499		Tube And Nut Asm		Appelez-nous	-
54	WB28K10648		Tube Cooktop Supply Asm		Appelez-nous	-
61	WB02K10203		Bushing Wire		Appelez-nous	-
62	WB28K10650		Tube Lockout Valve Asm		Appelez-nous	-
63	WB28K10651		Tube Valve Supply Asm		Appelez-nous	-
64	WB28K10652		Tube Valve Supply Asm		Appelez-nous	-
80	WS01F02616		Led Power Supply   (Replaces: WB25K10013)			Immediately	$ 147.83
95	WB28K10649		Tube Bake Supply Asm		Appelez-nous	-
195	WB19K10064		Relay Board Asm		Appelez-nous	-
196	WB19K10065		Relay Board Asm		Appelez-nous	-
203	WB04K10032		Gasket Frame Front		Appelez-nous	-
205	WB18K10070		Line Cord		Appelez-nous	-
206	WS01A01151		Screw   (Replaces: WB01K10091)			Immediately	$ 12.71
209	WB04K10031		Gasket Frame Front		Appelez-nous	-
212	WS01A01047		Speednut   (Replaces: WB1K2)				$ 3.97
213	WB02K10195		Gasket Frame Front		Appelez-nous	-
214	WB02K10194		Gasket Frame Front		Appelez-nous	-
217	WB63K10194		Panel Side Rt		Appelez-nous	-
218	WB63K10195		Panel Side Lf		Appelez-nous	-
221	WB07K10384		Toe Kick Top		Appelez-nous	-
222	WB07K10381		Toe Kick Bottom		Appelez-nous	-
223	WB02K10225		Clip Toe Kick		Appelez-nous	-
225	WB07K10388		Trim Vent Asm		Appelez-nous	-
229	WS01L05465		Leg Asm   (Replaces: WB02K10193)				$ 195.66
230	WB02K10237		Bracket Anti Tip		Appelez-nous	-
231	WB02K10258		Bracket Asm Anti-tip		Appelez-nous	-
231	WB02K10224		Brace Anti Tip		Appelez-nous	-
234	WB26K10013		Blower Tangential 45mm		Appelez-nous	-
237	WB28K10658		Pipe Supply Asm		Appelez-nous	-
244	WB26K10012		Blower Tangential 45mm				$ 175.90
272	WG02L01603		Side Support Panel   (Replaces: WB02T10034)				$ 4.20
277	WB10T10083		Receiver Hinge		Appelez-nous	-
281	WB07K10353		Panel Access		Appelez-nous	-
292	WB07K10303		Panel Access Back		Appelez-nous	-
324	WB02K10301		Nipple		Appelez-nous	-
329	WB02K10228		Adapter Flare Fitting		Appelez-nous	-
332	WS01F02068		Nipple   (Replaces: WB02K10227)				$ 12.40
333	WB01K10020		Spacer-handle		Appelez-nous	-
333	WB21K10135		Regulator		Appelez-nous	-
336	WB2X7066		Clip Wire		Appelez-nous	-
345	WS01F01308		Safety Valve Asm   (Replaces: WB21K10153)			Immediately	$ 121.54
578	WG02F00227		Capacitor Motor   (Replaces: WB27T10662)				$ 28.59
802	WB21K10154		Valve Lockout Motorized		Appelez-nous	-
875	WB02T10194		Bracket Capacitor		Appelez-nous	-
903	WB21K10155		Valve Shut Off		Appelez-nous	-
904	WB28K10661		Tee Connector		Appelez-nous	-
905	WB28K10662		Inlet Block		Appelez-nous	-
1100	WR01X10590		Scr 10-16 Ab Pnt20 1/2 S		Appelez-nous	-
1350	WB27K10367		Reed Switch Pcb		Appelez-nous	-
1600	WB02K10259		Rod Extension		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
